Toledo Regional ITS Architecture Update (Final)

Service Packages For: MC - MC07-2

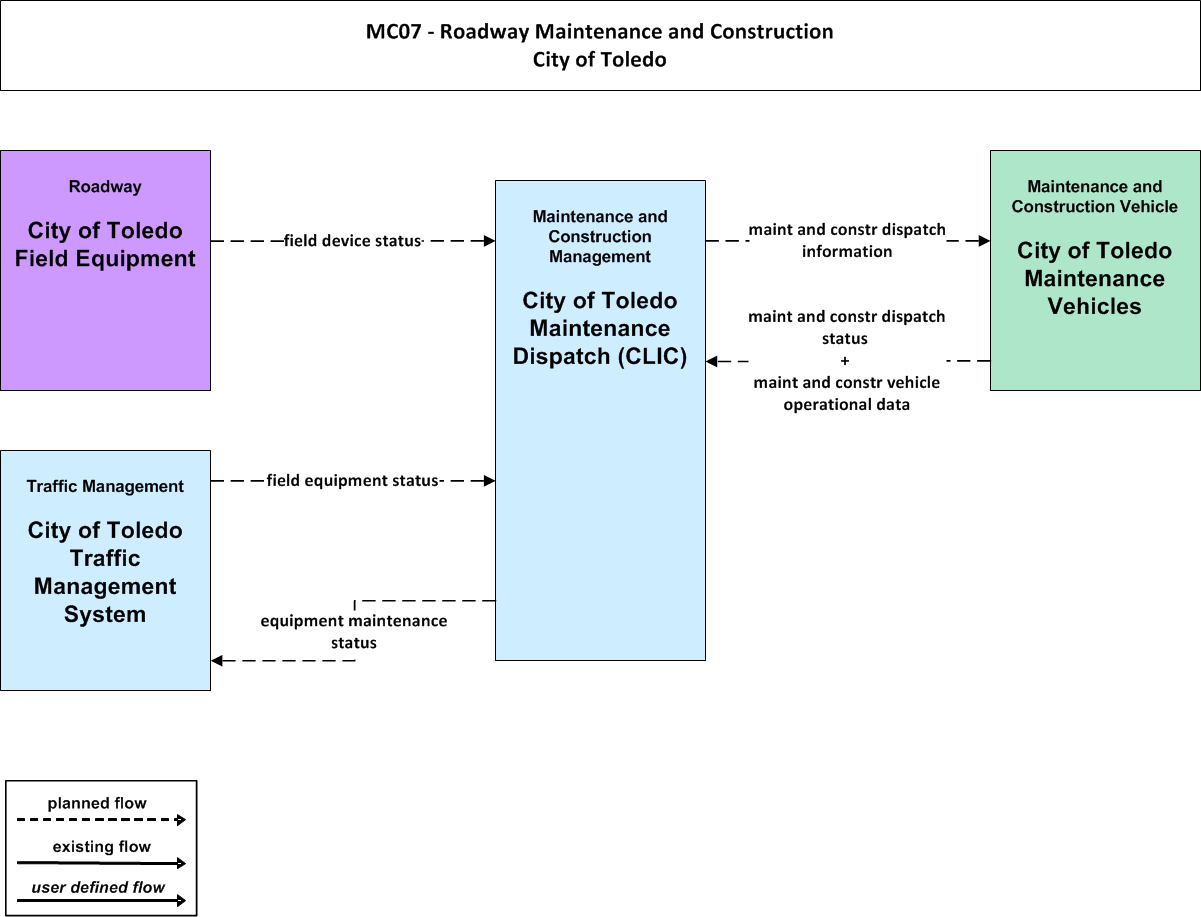

  MC07-2
Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
City of Toledo Maintenance Dispatch (CLIC) City of Toledo Department of Public Services
City of Toledo Traffic Management System City of Toledo Division of Transportation
City of Toledo Field Equipment City of Toledo Division of Transportation
City of Toledo Maintenance Vehicles City of Toledo

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
City of Toledo City of Toledo Maintenance Vehicles MCV Roadway Maintenance and Construction This equipment package includes the on-board systems that support routine non-winter maintenance on a roadway system or right-of-way. Routine maintenance includes landscape maintenance, hazard removal (roadway debris, dead animals), routine maintenance activities (roadway cleaning, grass cutting), and repair and maintenance of both ITS and non-ITS equipment on the roadway (e.g., signs, traffic controllers, traffic detectors, dynamic message signs, traffic signals, etc.).
City of Toledo Department of Public Services City of Toledo Maintenance Dispatch (CLIC) MCM Maintenance Decision Support This equipment package recommends maintenance courses of action based on current and forecast environmental and road conditions and additional application specific information. Decisions are supported through understandable presentation of filtered and fused environmental and road condition information for specific time horizons as well as specific maintenance recommendations that are generated by the system based on this integrated information. The recommended courses of action are supported by information on the anticipated consequences of action or inaction, when available.
City of Toledo Department of Public Services City of Toledo Maintenance Dispatch (CLIC) MCM Roadway Maintenance and Construction This equipment package provides overall management and support for routine maintenance on a roadway system or right-of-way. Services managed include landscape maintenance, hazard removal (roadway debris, dead animals), routine maintenance activities (roadway cleaning, grass cutting), and repair and maintenance of both ITS and non-ITS equipment on the roadway (e.g., signs, traffic controllers, traffic detectors, dynamic message signs, traffic signals, etc.). Environmental conditions information is also received from various weather sources to aid in scheduling routine maintenance activities.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
City of Toledo Maintenance Dispatch (CLIC) equipment maintenance status City of Toledo Traffic Management System
City of Toledo Maintenance Dispatch (CLIC) maint and constr dispatch information City of Toledo Maintenance Vehicles
City of Toledo Maintenance Vehicles maint and constr vehicle operational data City of Toledo Maintenance Dispatch (CLIC)
City of Toledo Maintenance Vehicles maint and constr dispatch status City of Toledo Maintenance Dispatch (CLIC)
City of Toledo Field Equipment field device status City of Toledo Maintenance Dispatch (CLIC)
City of Toledo Traffic Management System field equipment status City of Toledo Maintenance Dispatch (CLIC)
