KIPDA Regional ITS Architecture

Service Packages For: APTS - APTS06-1

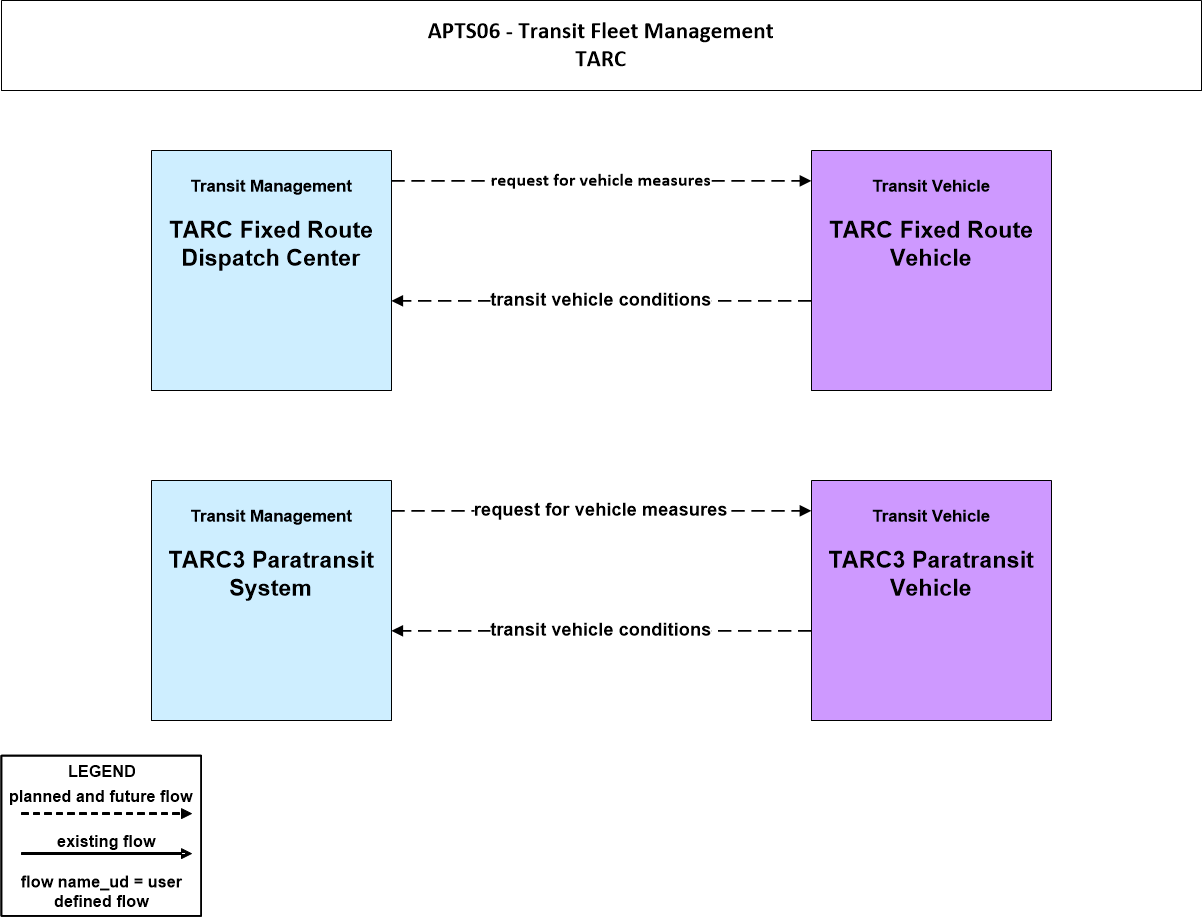

  APTS06-1
Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
TARC Fixed Route Dispatch Center TARC
TARC Fixed Route Vehicle TARC
TARC3 Paratransit Vehicle TARC
TARC3 Paratransit System TARC

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
TARC TARC Fixed Route Dispatch Center Transit Garage Maintenance This equipment package provides advanced maintenance functions for the transit property. It collects operational and maintenance data from transit vehicles, manages vehicle service histories, and monitors operators and vehicles. It collects vehicle mileage data and uses it to automatically generate preventative maintenance schedules for each vehicle by utilizing vehicle tracking data from a prerequisite vehicle tracking equipment package. In addition, it provides information to proper service personnel to support maintenance activities and records and verifies that maintenance work was performed.
TARC TARC Fixed Route Dispatch Center Transit Vehicle Assignment This equipment package assigns individual transit vehicles to vehicle blocks and downloads this information to the transit vehicle. It also provides an exception handling process for the vehicle assignment function to generate new, supplemental vehicle assignments when required by changes during the operating day. It provides an inventory management function for the transit facility which stores functional attributes about each of the vehicles owned by the transit operator. These attributes permit the planning and assignment functions to match vehicles with routes based on suitability for the types of service required by the particular routes.
TARC TARC Fixed Route Vehicle On-board Maintenance This on-board equipment package collects and processes transit vehicle maintenance data including mileage and vehicle operating conditions. This maintenance information is provided to the management center and used to schedule future vehicle maintenance and repair.
TARC TARC Fixed Route Vehicle On-board Schedule Management This on-board equipment package monitors schedule performance and identifies corrective actions when a deviation is detected. It provides two-way communication between the transit vehicle and center, enabling the center to communicate with the vehicle operator and monitor on-board systems.
TARC TARC3 Paratransit System Transit Vehicle Assignment This equipment package assigns individual transit vehicles to vehicle blocks and downloads this information to the transit vehicle. It also provides an exception handling process for the vehicle assignment function to generate new, supplemental vehicle assignments when required by changes during the operating day. It provides an inventory management function for the transit facility which stores functional attributes about each of the vehicles owned by the transit operator. These attributes permit the planning and assignment functions to match vehicles with routes based on suitability for the types of service required by the particular routes.
TARC TARC3 Paratransit System Transit Garage Maintenance This equipment package provides advanced maintenance functions for the transit property. It collects operational and maintenance data from transit vehicles, manages vehicle service histories, and monitors operators and vehicles. It collects vehicle mileage data and uses it to automatically generate preventative maintenance schedules for each vehicle by utilizing vehicle tracking data from a prerequisite vehicle tracking equipment package. In addition, it provides information to proper service personnel to support maintenance activities and records and verifies that maintenance work was performed.
TARC TARC3 Paratransit Vehicle On-board Schedule Management This on-board equipment package monitors schedule performance and identifies corrective actions when a deviation is detected. It provides two-way communication between the transit vehicle and center, enabling the center to communicate with the vehicle operator and monitor on-board systems.
TARC TARC3 Paratransit Vehicle On-board Maintenance This on-board equipment package collects and processes transit vehicle maintenance data including mileage and vehicle operating conditions. This maintenance information is provided to the management center and used to schedule future vehicle maintenance and repair.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
TARC Fixed Route Vehicle transit vehicle conditions TARC Fixed Route Dispatch Center
TARC Fixed Route Dispatch Center request for vehicle measures TARC Fixed Route Vehicle
TARC3 Paratransit Vehicle transit vehicle conditions TARC3 Paratransit System
TARC3 Paratransit System request for vehicle measures TARC3 Paratransit Vehicle
