KIPDA Regional ITS Architecture

Service Packages For: APTS - APTS05-1


  APTS05-1

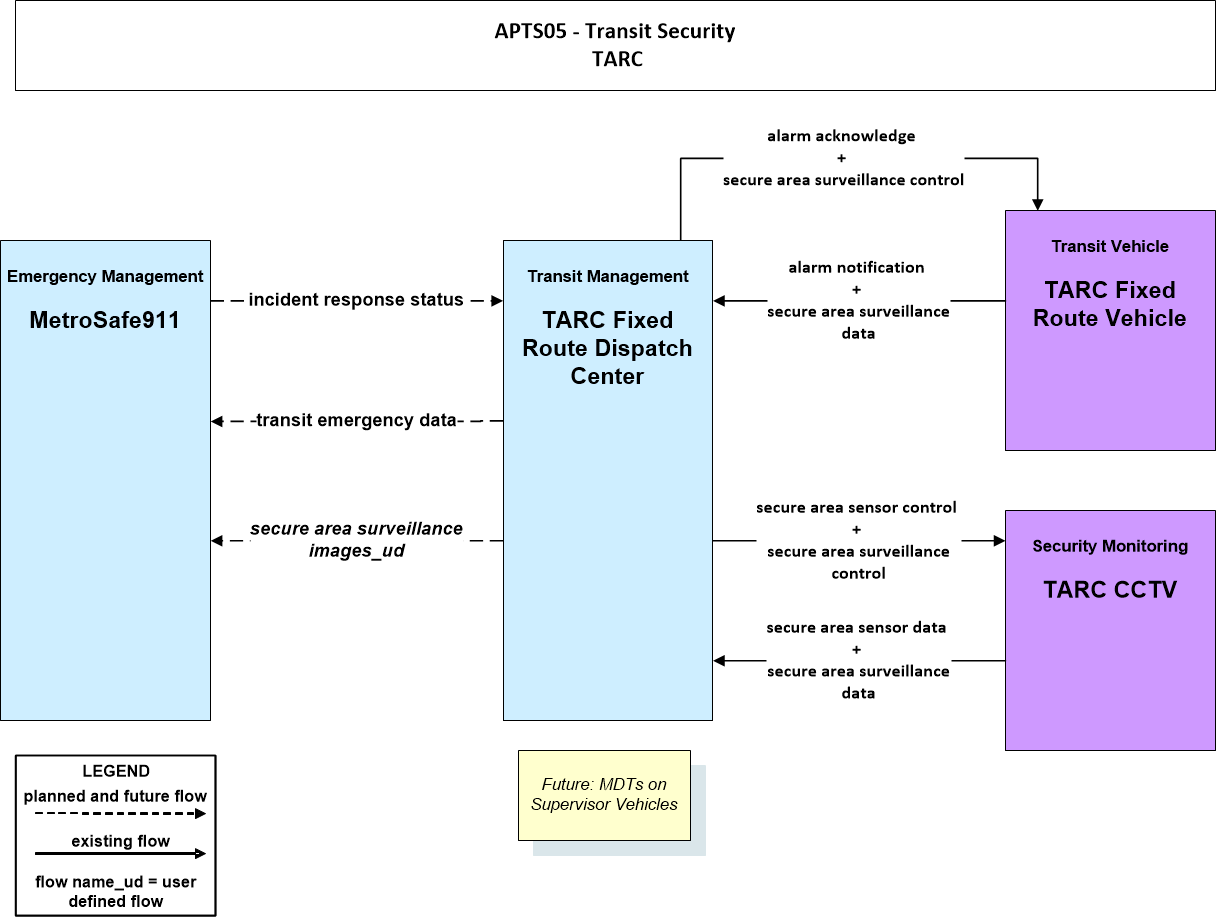

Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
TARC Fixed Route Dispatch Center TARC
TARC Fixed Route Dispatch Center TARC
MetroSafe911 Louisville Metro Emergency Services
TARC Fixed Route Vehicle TARC
TARC CCTV TARC

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
Louisville Metro Emergency Services MetroSafe911 Emergency Response Management This equipment package provides the strategic emergency response capabilities and broad inter-agency interfaces that are implemented for extraordinary incidents and disasters that require response from outside the local community. It provides the functional capabilities and interfaces commonly associated with Emergency Operations Centers. This equipment package develops and stores emergency response plans and manages overall coordinated response to emergencies. It monitors real-time information on the state of the regional transportation system including current traffic and road conditions, weather conditions, special event and incident information. It tracks the availability of resources and assists in the appropriate allocation of these resources for a particular emergency response. This equipment package provides coordination between multiple allied agencies before and during emergencies to implement emergency response plans and track progress through the incident. It also coordinates with the public through the Emergency Telecommunication Systems (e.g., Reverse 911). This equipment package coordinates with public health systems to provide the most appropriate response for emergencies involving biological or other medical hazards.
TARC TARC CCTV Field Secure Area Surveillance This equipment package includes video and audio surveillance equipment that monitors conditions of secure areas including facilities (e.g. transit yards) and transportation infrastructure (e.g. as bridges, tunnels, interchanges, and transit railways or guideways). It provides the surveillance information to the Emergency Management Subsystem for possible threat detection. The equipment package also provides local processing of the video or audio information, providing processed or analyzed results to the Emergency Management Subsystem. This equipment package provides the same functions as the Traveler Secure Area Surveillance equipment package.
TARC TARC Fixed Route Dispatch Center Transit Center Security This equipment package monitors transit vehicle operator or traveler activated alarms received from on-board a transit vehicle. It supports transit vehicle operator authentication and provides the capability to remotely disable a transit vehicle. This equipment package also includes the capability to alert operators and police to potential incidents identified by these security features.
TARC TARC Fixed Route Dispatch Center Center Secure Area Sensor Management This equipment package manages sensors that monitor secure areas in the transportation system, processes the collected data, performs threat analysis in which data is correlated with other sensor, surveillance, and advisory inputs, and then disseminates resultant threat information to emergency personnel and other agencies. In response to identified threats, the operator may request activation of barrier and safeguard systems to preclude an incident, control access during and after an incident or mitigate impact of an incident. The sensors may be in secure areas frequented by travelers (i.e., transit stops, transit stations, rest areas, park and ride lots, modal interchange facilities, on-board a transit vehicle, etc.) or around transportation infrastructure such as bridges, tunnels and transit railways or guideways. The types of sensors include acoustic, threat (e.g. chemical agent, toxic industrial chemical, biological, explosives, and radiological sensors), infrastructure condition and integrity, motion and object sensors.
TARC TARC Fixed Route Dispatch Center Center Secure Area Alarm Support This equipment package receives traveler or transit vehicle operator alarm messages, notifies the system operator, and provides acknowledgement of alarm receipt back to the originator of the alarm. The alarms received can be generated by silent or audible alarm systems and may originate from public areas (e.g. transit stops, park and ride lots, transit stations, rest areas) or transit vehicles. The nature of the emergency may be determined based on the information in the alarm message as well as other inputs.
TARC TARC Fixed Route Dispatch Center Center Secure Area Surveillance This equipment package monitors surveillance inputs from secure areas in the transportation system. The surveillance may be of secure areas frequented by travelers (i.e., transit stops, transit stations, rest areas, park and ride lots, modal interchange facilities, on-board a transit vehicle, etc.) or around transportation infrastructure such as bridges, tunnels and transit railways or guideways. It provides both video and audio surveillance information to emergency personnel and automatically alerts emergency personnel of potential incidents.
TARC TARC Fixed Route Vehicle On-board Transit Security This equipment package provides security and safety functions on-board the transit vehicle. It includes surveillance and sensor systems that monitor the on-board environment, silent alarms that can be activated by transit user or vehicle operator, operator authentication, and a remote vehicle disable function. The surveillance equipment includes video (e.g. CCTV cameras), audio systems and/or event recorder systems. The sensor equipment includes threat sensors (e.g. chemical agent, toxic industrial chemical, biological, explosives, and radiological sensors) and object detection sensors (e.g. metal detectors).

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
TARC CCTV secure area surveillance data TARC Fixed Route Dispatch Center
TARC CCTV secure area sensor data TARC Fixed Route Dispatch Center
TARC Fixed Route Vehicle secure area surveillance data TARC Fixed Route Dispatch Center
TARC Fixed Route Vehicle alarm notification TARC Fixed Route Dispatch Center
MetroSafe911 incident response status TARC Fixed Route Dispatch Center
TARC Fixed Route Dispatch Center secure area surveillance control TARC Fixed Route Vehicle
TARC Fixed Route Dispatch Center alarm acknowledge TARC Fixed Route Vehicle
TARC Fixed Route Dispatch Center secure area surveillance control TARC CCTV
TARC Fixed Route Dispatch Center secure area sensor control TARC CCTV
TARC Fixed Route Dispatch Center secure area surveillance images_ud MetroSafe911
TARC Fixed Route Dispatch Center transit emergency data MetroSafe911
