Interface: Municipal Public Safety Dispatch To TxDOT Yoakum District Office -Traffic

Architecture Geographic Scope

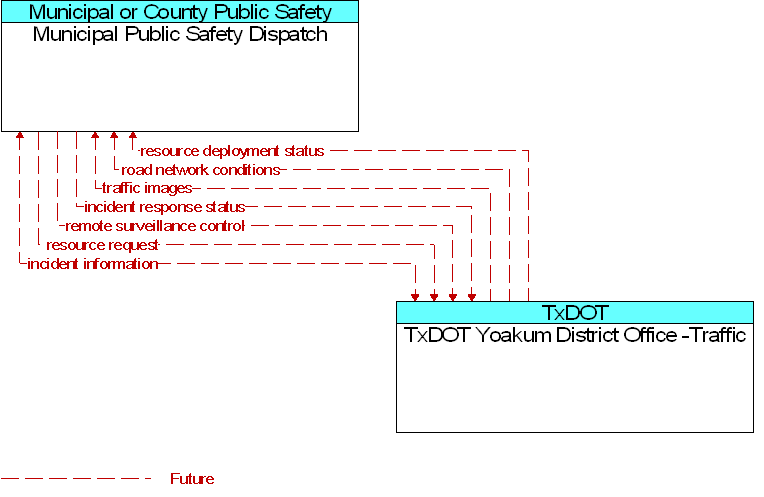

Municipal Public Safety Dispatch to TxDOT Yoakum District Office -Traffic Interface Diagram



Architecture Flow Definitions

incident information   (Future)   Applicable ITS Standards

Notification of existence of incident and expected severity, location, time and nature of incident. As additional information is gathered and the incident evolves, updated incident information is provided. Incidents include any event that impacts transportation system operation ranging from routine incidents (e.g., disabled vehicle at the side of the road) through large-scale natural or human-caused disasters that involve loss of life, injuries, extensive property damage, and multi-jurisdictional response.



incident response status   (Future)   Applicable ITS Standards

Status of the current incident response including a summary of incident status and its impact on the transportation system, traffic management strategies implemented at the site (e.g., closures, diversions, traffic signal control overrides), and current and planned response activities.



remote surveillance control   (Future)   Applicable ITS Standards

The control commands used to remotely operate another center's sensors or surveillance equipment so that roadside surveillance assets can be shared by more than one agency.



resource deployment status   (Future)   Applicable ITS Standards

Status of traffic management resource deployment identifying the resources (vehicles, equipment, materials, and personnel) available and their current status. General resource inventory information and specific status of deployed resources may be included.



resource request   (Future)   Applicable ITS Standards

A request for traffic management resources to implement special traffic control measures, assist in clean up, verify an incident, etc. The request may poll for resource availability or request pre-staging, staging, or immediate deployment of resources.



road network conditions   (Future)   Applicable ITS Standards

Current and forecasted traffic information, road and weather conditions, traffic incident information, and other road network status. Either raw data, processed data, or some combination of both may be provided by this architecture flow. Information on diversions and alternate routes, closures, and special traffic restrictions (lane/shoulder use, weight restrictions, width restrictions, HOV requirements) in effect is also included.



traffic images   (Future)   Applicable ITS Standards

High fidelity, real-time traffic images suitable for surveillance monitoring by the operator or for use in machine vision applications. This flow includes the images and the operational status of the surveillance system.
