Interface: Golden Crescent Transit Dispatch To Golden Crescent Transit Vehicles

Architecture Geographic Scope

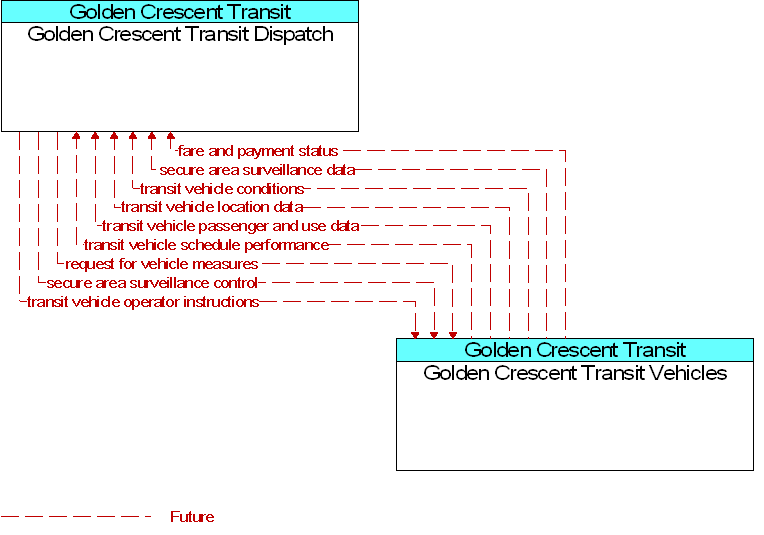

Golden Crescent Transit Dispatch to Golden Crescent Transit Vehicles Interface Diagram



Architecture Flow Definitions

fare and payment status   (Future)   Applicable ITS Standards

Current fare collection information including the operational status of the fare collection equipment and financial payment transaction data.



request for vehicle measures   (Future)   Applicable ITS Standards

Request for vehicle performance and maintenance data collected by onboard sensors.



secure area surveillance control   (Future)   Applicable ITS Standards

Information used to configure and control audio and video surveillance systems used for transportation infrastructure security in secure areas. The provided information controls surveillance data collection, aggregation, filtering, and other local processing.



secure area surveillance data   (Future)   Applicable ITS Standards

Data collected from surveillance systems used to monitor secure areas. Includes video, audio, processed surveillance data, equipment operational status, and alarm indicators when a threat has been detected.



transit vehicle conditions   (Future)   Applicable ITS Standards

Operating conditions of transit vehicle (e.g., engine running, oil pressure, or mileage).



transit vehicle location data   (Future)   Applicable ITS Standards

Current transit vehicle location and related operational conditions data provided by a transit vehicle.



transit vehicle operator instructions   (Future)   Applicable ITS Standards

Transit service instructions, traffic information, road conditions, and other information for both transit and paratransit operators.



transit vehicle passenger and use data   (Future)   Applicable ITS Standards

Data collected on board the transit vehicle pertaining to availability and/or passenger count.



transit vehicle schedule performance   (Future)   Applicable ITS Standards

Estimated times of arrival and anticipated schedule deviations reported by a transit vehicle.
