Interface: Municipal Public Works Department To Municipal PWD Vehicles

Architecture Geographic Scope

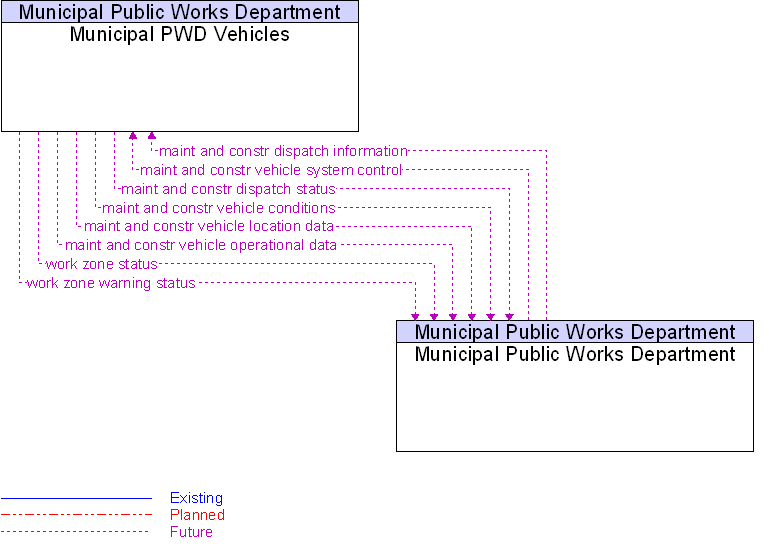

Municipal Public Works Department to Municipal PWD Vehicles Interface Diagram



Architecture Flow Definitions

maint and constr dispatch information   (Future)   No Applicable ITS Standards

Information used to dispatch maintenance and construction vehicles, equipment, and crews. This information includes routing information, traffic information, road restrictions, incident information, environmental information, decision support information, maintenance schedule data, dispatch instructions, personnel assignments, and corrective actions.



maint and constr dispatch status   (Future)   No Applicable ITS Standards

Current maintenance and construction status including work data, operator status, crew status, and equipment status.



maint and constr vehicle conditions   (Future)   No Applicable ITS Standards

Vehicle diagnostics information that is collected, filtered, and selectively reported by a maintenance and construction vehicle. The information includes engine temperature, mileage, tire wear, brake wear, belt wear, and any warnings or alarms concerning the operational condition of the vehicle and ancillary equipment.



maint and constr vehicle location data   (Future)   No Applicable ITS Standards

The current location and related status (e.g., direction and speed) of the maintenance/construction vehicle.



maint and constr vehicle operational data   (Future)   No Applicable ITS Standards

Data that describes the maintenance and construction activity performed by the vehicle. Operational data includes materials usage (amount stored and current application rate), operational state of the maintenance equipment (e.g., blade up/down, spreader pattern), vehicle safety status, and other measures associated with the operation of a maintenance, construction, or other special purpose vehicle. Operational data may include basic operational status of the vehicle equipment or a more precise record of the work performed (e.g., application of crack sealant with precise locations and application characteristics).



maint and constr vehicle system control   (Future)   No Applicable ITS Standards

Configure and control data that supports remote control of on-board maintenance and construction vehicle systems and field equipment that is remotely controlled by the vehicle. For example, the data can be used to adjust material application rates and spread patterns.



work zone status   (Future)   No Applicable ITS Standards

Current work zone status including current location (and future locations for moving work zones), impact to the roadway, required lane shifts, expected time(s) and duration of impact, anticipated delays, alternate routes, and suggested speed limits.



work zone warning status   (Future)   No Applicable ITS Standards

Status of a work zone safety monitoring and warning devices. This flow documents system activations and includes additional supporting information (e.g., an image) that allows verification of the alarm.
