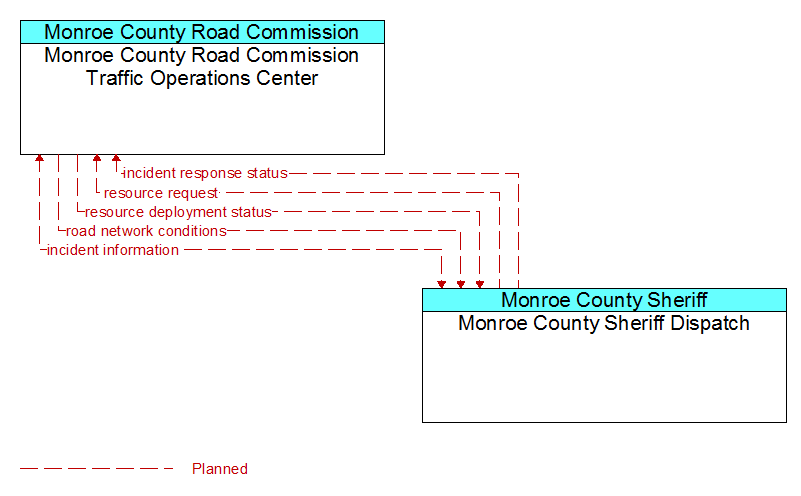

Interconnect: Monroe County Road Commission Traffic Operations Center - Monroe County Sheriff Dispatch
(Click on image to view full-size)
(E) = Existing Flow
(P) = Planned/Future Flow
(E/P) = Existing and Planned Flow - Flow appears as Existing and Planned
Source
Architecture Flows
Destination
Monroe County Road Commission Traffic Operations Center
resource deployment status (P)
incident information (P)
road network conditions (P)
Monroe County Sheriff Dispatch
Monroe County Sheriff Dispatch
resource request (P)
incident response status (P)
incident information (P)
Monroe County Road Commission Traffic Operations Center
