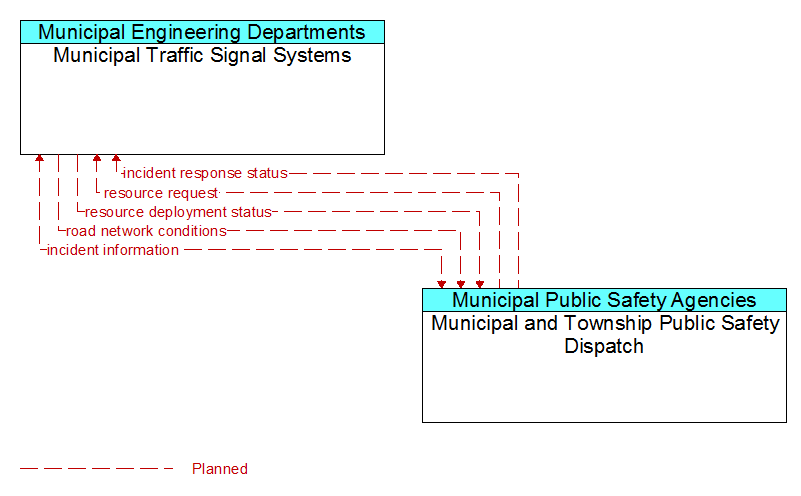

Interconnect: Municipal Traffic Signal Systems - Municipal and Township Public Safety Dispatch
(Click on image to view full-size)
(E) = Existing Flow
(P) = Planned/Future Flow
(E/P) = Existing and Planned Flow - Flow appears as Existing and Planned
Source
Architecture Flows
Destination
Municipal Traffic Signal Systems
road network conditions (P)
resource deployment status (P)
incident information (P)
Municipal and Township Public Safety Dispatch
Municipal and Township Public Safety Dispatch
resource request (P)
incident response status (P)
incident information (P)
Municipal Traffic Signal Systems
