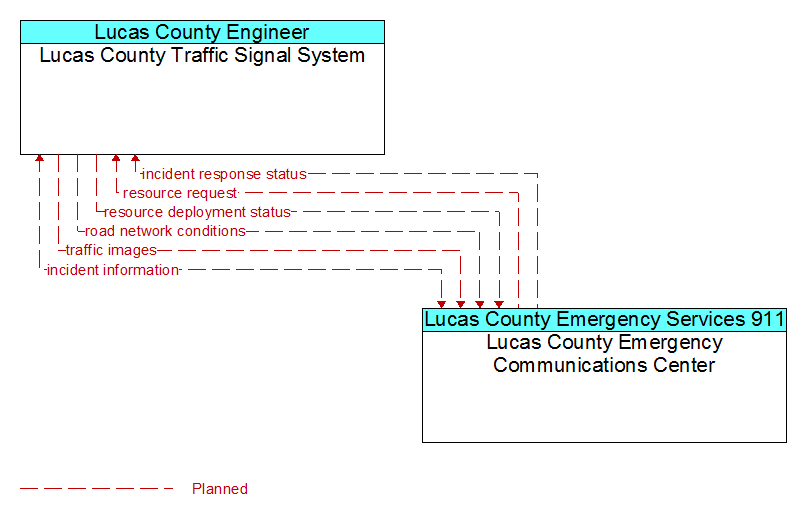

Interconnect: Lucas County Traffic Signal System - Lucas County Emergency Communications Center
(Click on image to view full-size)
(E) = Existing Flow
(P) = Planned/Future Flow
(E/P) = Existing and Planned Flow - Flow appears as Existing and Planned
Source
Architecture Flows
Destination
Lucas County Traffic Signal System
traffic images (P)
resource deployment status (P)
incident information (P)
road network conditions (P)
Lucas County Emergency Communications Center
Lucas County Emergency Communications Center
resource request (P)
incident response status (P)
incident information (P)
Lucas County Traffic Signal System
