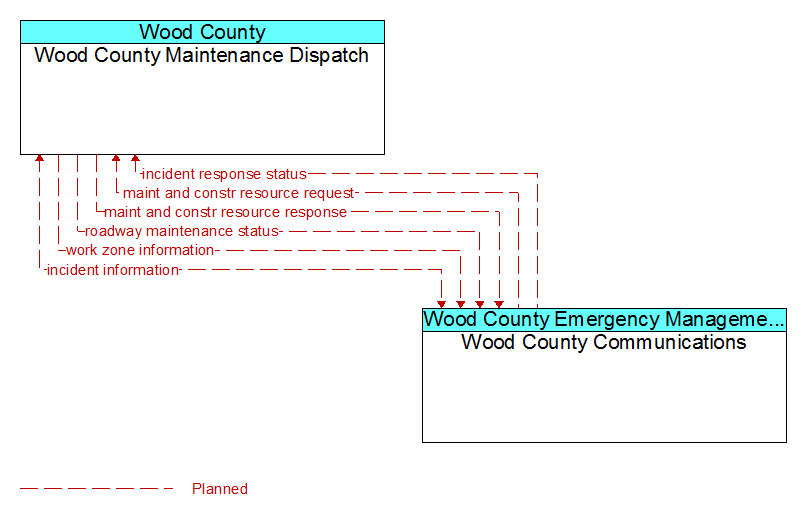

Interconnect: Wood County Maintenance Dispatch - Wood County Communications
(Click on image to view full-size)
(E) = Existing Flow
(P) = Planned/Future Flow
(E/P) = Existing and Planned Flow - Flow appears as Existing and Planned
Source
Architecture Flows
Destination
Wood County Maintenance Dispatch
work zone information (P)
roadway maintenance status (P)
maint and constr resource response (P)
incident information (P)
Wood County Communications
Wood County Communications
maint and constr resource request (P)
incident response status (P)
incident information (P)
Wood County Maintenance Dispatch
