Toledo Regional ITS Architecture Update (Final)

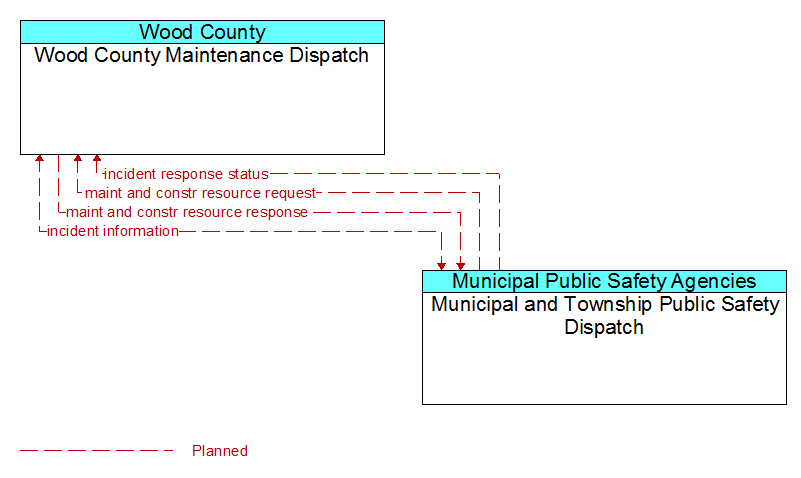

Interconnect: Wood County Maintenance Dispatch - Municipal and Township Public Safety Dispatch


(Click on image to view full-size)
Wood County Maintenance Dispatch - Municipal and Township Public Safety Dispatch

(E) = Existing Flow
(P) = Planned/Future Flow
(E/P) = Existing and Planned Flow - Flow appears as Existing and Planned
SourceArchitecture FlowsDestination
Wood County Maintenance Dispatch maint and constr resource response (P)
incident information (P)
Municipal and Township Public Safety Dispatch
Municipal and Township Public Safety Dispatch maint and constr resource request (P)
incident response status (P)
incident information (P)
Wood County Maintenance Dispatch
