Toledo Regional ITS Architecture Update (Final)

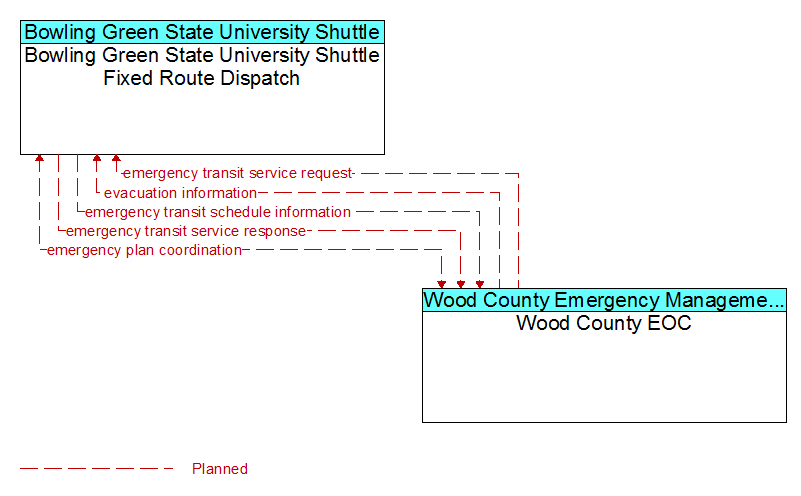

Interconnect: Bowling Green State University Shuttle Fixed Route Dispatch - Wood County EOC

(Click on image to view full-size)
Bowling Green State University Shuttle Fixed Route Dispatch - Wood County EOC

(E) = Existing Flow
(P) = Planned/Future Flow
(E/P) = Existing and Planned Flow - Flow appears as Existing and Planned
SourceArchitecture FlowsDestination
Bowling Green State University Shuttle Fixed Route Dispatch emergency transit service response (P)
emergency transit schedule information (P)
emergency plan coordination (P)
Wood County EOC
Wood County EOC evacuation information (P)
emergency transit service request (P)
emergency plan coordination (P)
Bowling Green State University Shuttle Fixed Route Dispatch
