Toledo Regional ITS Architecture Update (Final)

Interconnect: Bowling Green State University Shuttle Vehicles - Bowling Green State University Shuttle Fixed Route Dispatch

(Click on image to view full-size)

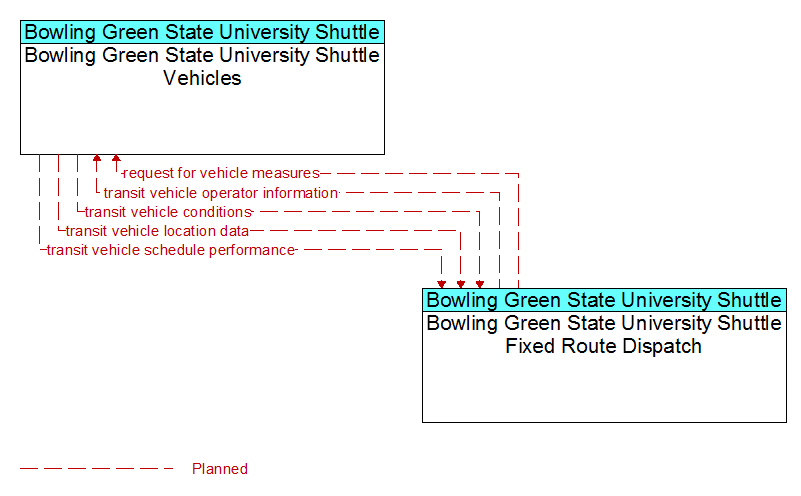

Bowling Green State University Shuttle Vehicles - Bowling Green State University Shuttle Fixed Route Dispatch

(E) = Existing Flow
(P) = Planned/Future Flow
(E/P) = Existing and Planned Flow - Flow appears as Existing and Planned
SourceArchitecture FlowsDestination
Bowling Green State University Shuttle Vehicles transit vehicle conditions (P)
transit vehicle schedule performance (P)
transit vehicle location data (P)
Bowling Green State University Shuttle Fixed Route Dispatch
Bowling Green State University Shuttle Fixed Route Dispatch request for vehicle measures (P)
transit vehicle operator information (P)
Bowling Green State University Shuttle Vehicles
