Toledo Regional ITS Architecture Update (Final)

Interconnect: City of Bowling Green Traffic Signal System - City of Bowling Green Electric Division Dispatch

(Click on image to view full-size)

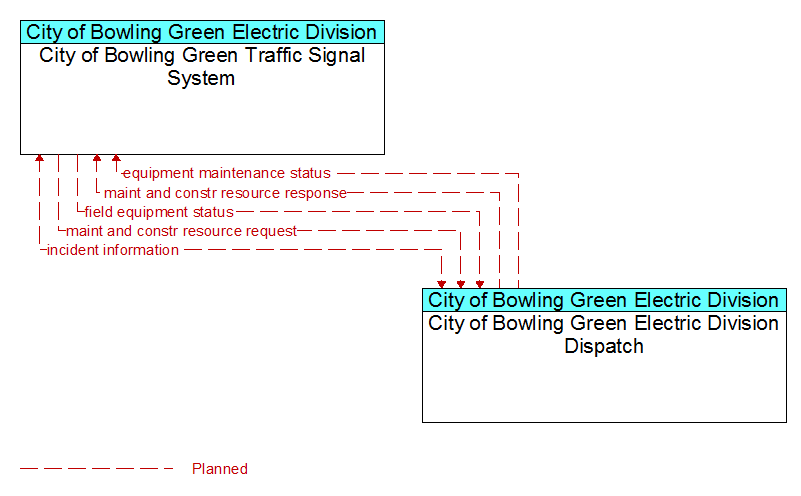

City of Bowling Green Traffic Signal System - City of Bowling Green Electric Division Dispatch

(E) = Existing Flow
(P) = Planned/Future Flow
(E/P) = Existing and Planned Flow - Flow appears as Existing and Planned
SourceArchitecture FlowsDestination
City of Bowling Green Traffic Signal System field equipment status (P)
maint and constr resource request (P)
incident information (P)
City of Bowling Green Electric Division Dispatch
City of Bowling Green Electric Division Dispatch equipment maintenance status (P)
maint and constr resource response (P)
incident information (P)
City of Bowling Green Traffic Signal System
