Toledo Regional ITS Architecture Update (Final)

Interconnect: City of Bowling Green Traffic Signal System - City of Bowling Green EOC

(Click on image to view full-size)

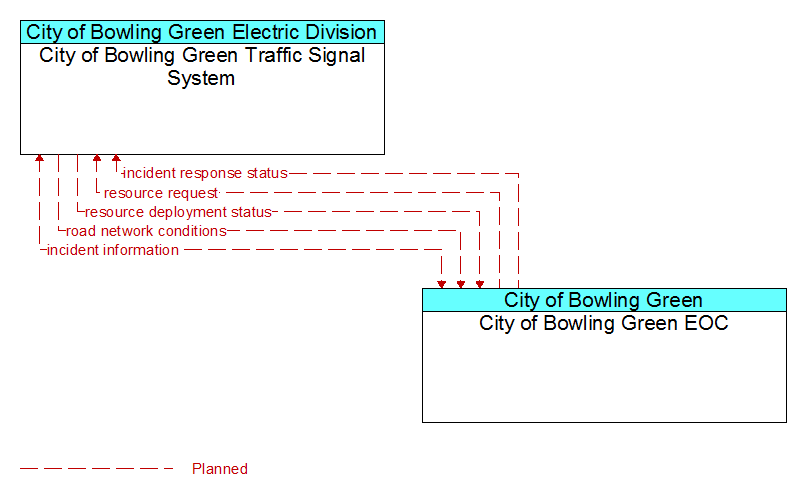

City of Bowling Green Traffic Signal System - City of Bowling Green EOC

(E) = Existing Flow
(P) = Planned/Future Flow
(E/P) = Existing and Planned Flow - Flow appears as Existing and Planned
SourceArchitecture FlowsDestination
City of Bowling Green Traffic Signal System road network conditions (P)
resource deployment status (P)
incident information (P)
City of Bowling Green EOC
City of Bowling Green EOC resource request (P)
incident response status (P)
incident information (P)
City of Bowling Green Traffic Signal System
