Toledo Regional ITS Architecture Update (Final)

Interconnect: City of Bowling Green Traffic Signal System - Wood County EOC

(Click on image to view full-size)

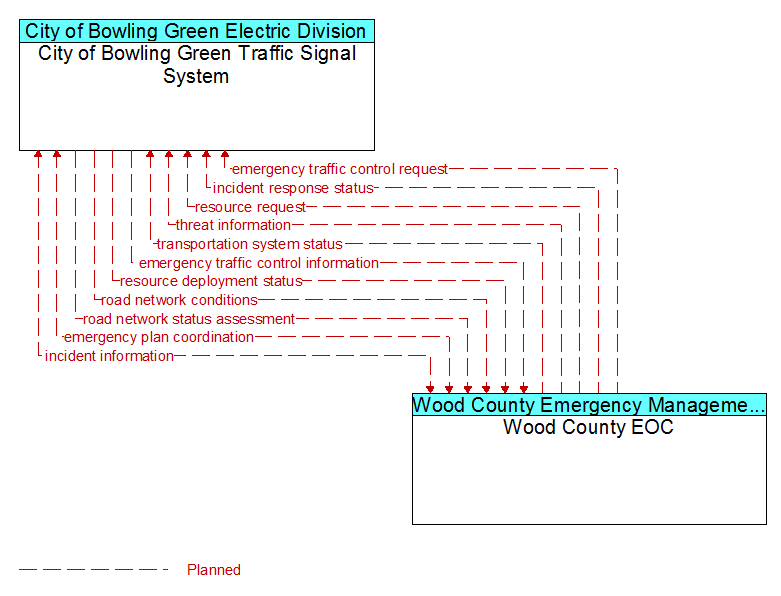

City of Bowling Green Traffic Signal System - Wood County EOC

(E) = Existing Flow
(P) = Planned/Future Flow
(E/P) = Existing and Planned Flow - Flow appears as Existing and Planned
SourceArchitecture FlowsDestination
City of Bowling Green Traffic Signal System road network status assessment (P)
emergency traffic control information (P)
emergency plan coordination (P)
road network conditions (P)
resource deployment status (P)
incident information (P)
Wood County EOC
Wood County EOC transportation system status (P)
emergency traffic control request (P)
emergency plan coordination (P)
threat information (P)
resource request (P)
incident response status (P)
incident information (P)
City of Bowling Green Traffic Signal System
