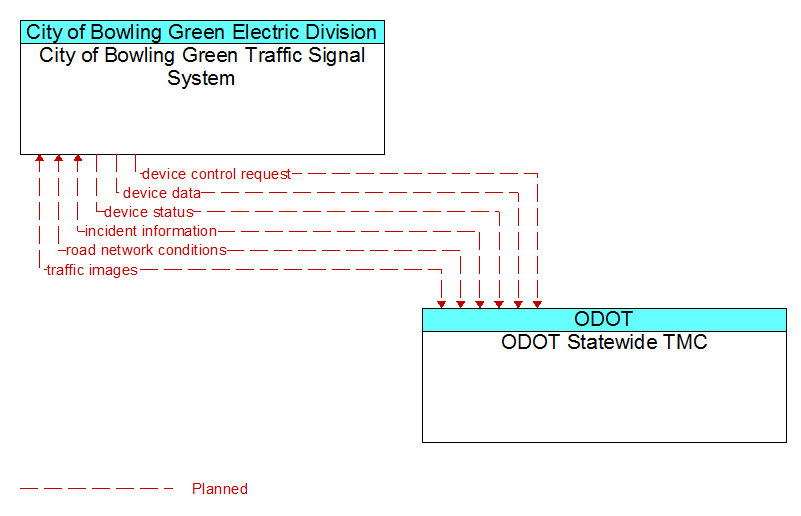

Interconnect: City of Bowling Green Traffic Signal System - ODOT Statewide TMC
(Click on image to view full-size)
(E) = Existing Flow
(P) = Planned/Future Flow
(E/P) = Existing and Planned Flow - Flow appears as Existing and Planned
Source
Architecture Flows
Destination
City of Bowling Green Traffic Signal System
device status (P)
device data (P)
device control request (P)
traffic images (P)
road network conditions (P)
incident information (P)
ODOT Statewide TMC
ODOT Statewide TMC
traffic images (P)
road network conditions (P)
incident information (P)
City of Bowling Green Traffic Signal System
