Toledo Regional ITS Architecture Update (Final)

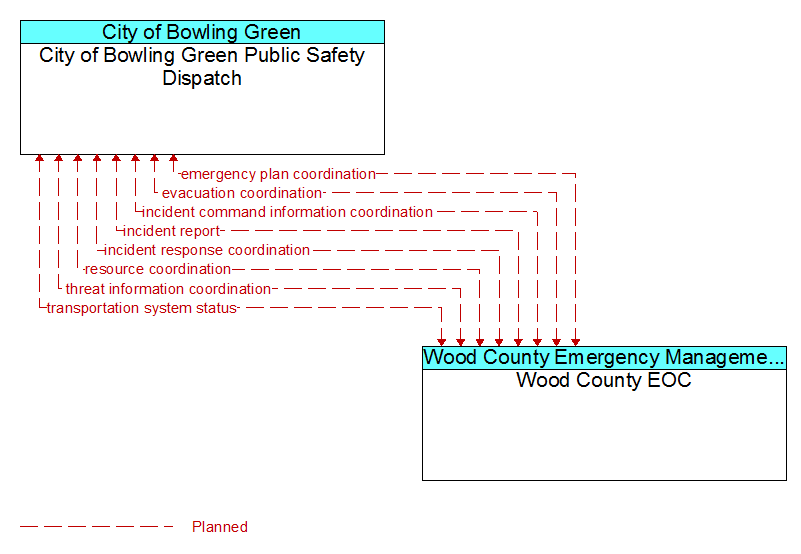

Interconnect: City of Bowling Green Public Safety Dispatch - Wood County EOC

(Click on image to view full-size)
City of Bowling Green Public Safety Dispatch - Wood County EOC

(E) = Existing Flow
(P) = Planned/Future Flow
(E/P) = Existing and Planned Flow - Flow appears as Existing and Planned
SourceArchitecture FlowsDestination
City of Bowling Green Public Safety Dispatch evacuation coordination (P)
transportation system status (P)
resource coordination (P)
incident command information coordination (P)
emergency plan coordination (P)
threat information coordination (P)
incident response coordination (P)
incident report (P)
Wood County EOC
Wood County EOC evacuation coordination (P)
transportation system status (P)
resource coordination (P)
incident command information coordination (P)
emergency plan coordination (P)
threat information coordination (P)
incident report (P)
incident response coordination (P)
City of Bowling Green Public Safety Dispatch
