Toledo Regional ITS Architecture Update (Final)

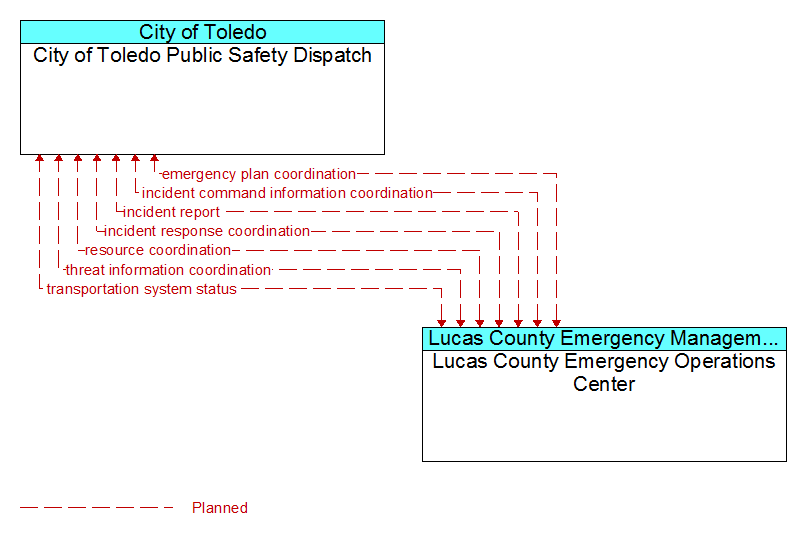

Interconnect: City of Toledo Public Safety Dispatch - Lucas County Emergency Operations Center

(Click on image to view full-size)
City of Toledo Public Safety Dispatch - Lucas County Emergency Operations Center

(E) = Existing Flow
(P) = Planned/Future Flow
(E/P) = Existing and Planned Flow - Flow appears as Existing and Planned
SourceArchitecture FlowsDestination
City of Toledo Public Safety Dispatch transportation system status (P)
resource coordination (P)
incident command information coordination (P)
emergency plan coordination (P)
threat information coordination (P)
incident response coordination (P)
incident report (P)
Lucas County Emergency Operations Center
Lucas County Emergency Operations Center transportation system status (P)
resource coordination (P)
incident command information coordination (P)
emergency plan coordination (P)
threat information coordination (P)
incident report (P)
incident response coordination (P)
City of Toledo Public Safety Dispatch
