Toledo Regional ITS Architecture Update (Final)

Interconnect: City of Toledo Public Safety Dispatch - City of Toledo Traffic Management System

(Click on image to view full-size)

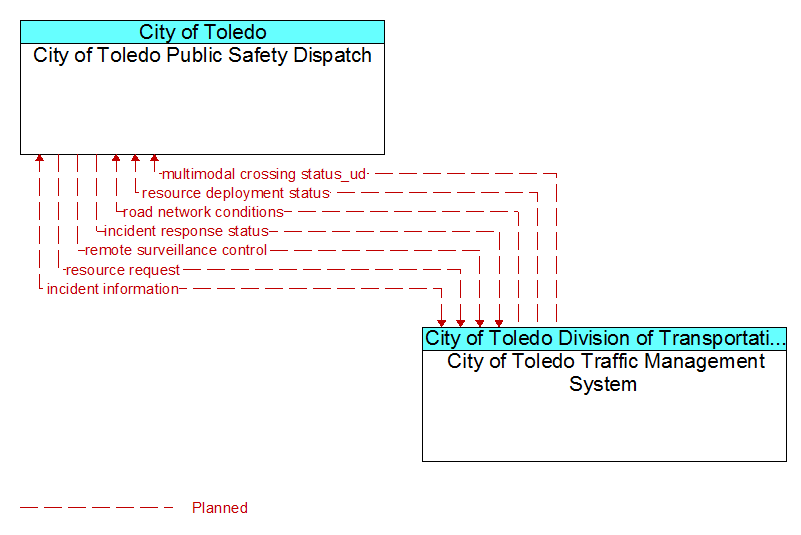

City of Toledo Public Safety Dispatch - City of Toledo Traffic Management System

(E) = Existing Flow
(P) = Planned/Future Flow
(E/P) = Existing and Planned Flow - Flow appears as Existing and Planned
SourceArchitecture FlowsDestination
City of Toledo Public Safety Dispatch resource request (P)
remote surveillance control (P)
incident response status (P)
incident information (P)
City of Toledo Traffic Management System
City of Toledo Traffic Management System multimodal crossing status_ud (P)
resource deployment status (P)
incident information (P)
road network conditions (P)
City of Toledo Public Safety Dispatch
