Toledo Regional ITS Architecture Update (Final)

Interconnect: City of Toledo Public Safety Dispatch - ODOT Statewide TMC

(Click on image to view full-size)

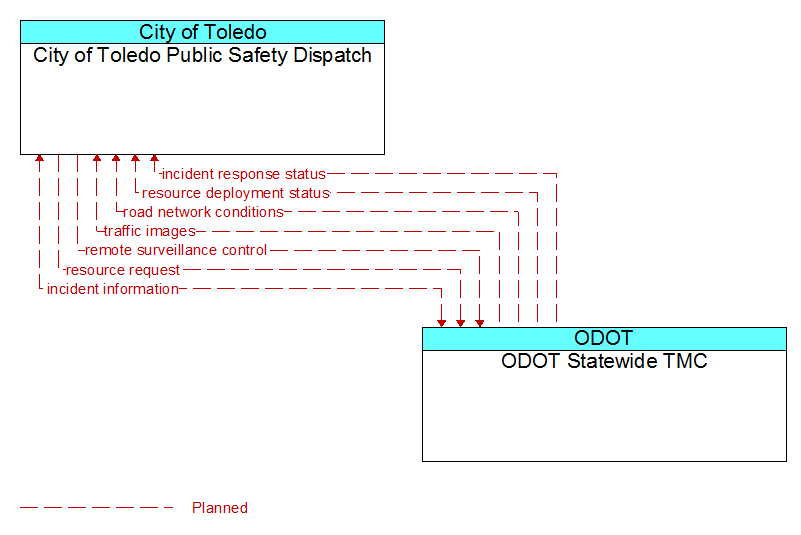

City of Toledo Public Safety Dispatch - ODOT Statewide TMC

(E) = Existing Flow
(P) = Planned/Future Flow
(E/P) = Existing and Planned Flow - Flow appears as Existing and Planned
SourceArchitecture FlowsDestination
City of Toledo Public Safety Dispatch resource request (P)
remote surveillance control (P)
incident information (P)
ODOT Statewide TMC
ODOT Statewide TMC traffic images (P)
road network conditions (P)
resource deployment status (P)
incident response status (P)
incident information (P)
City of Toledo Public Safety Dispatch
