Toledo Regional ITS Architecture Update (Final)

Interconnect: City of Toledo Field Equipment - City of Toledo Traffic Management System

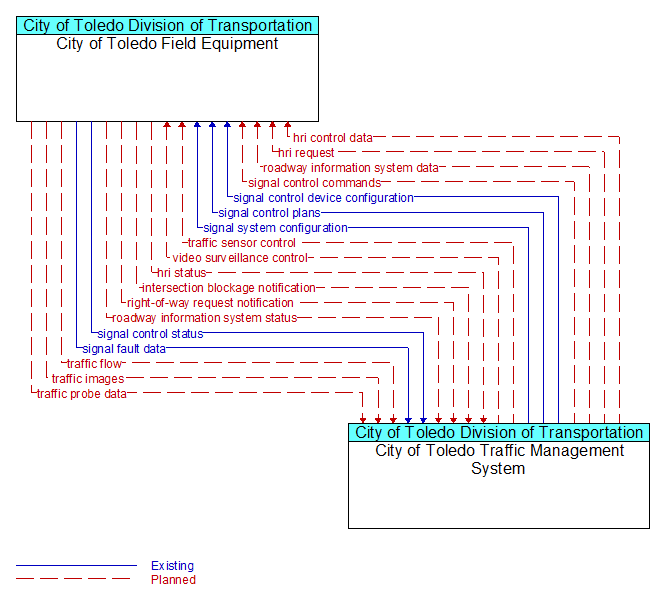

(Click on image to view full-size)
City of Toledo Field Equipment - City of Toledo Traffic Management System

(E) = Existing Flow
(P) = Planned/Future Flow
(E/P) = Existing and Planned Flow - Flow appears as Existing and Planned
SourceArchitecture FlowsDestination
City of Toledo Field Equipment right-of-way request notification (P)
intersection blockage notification (P)
hri status (P)
roadway information system status (P)
signal fault data (E)
signal control status (E)
traffic probe data (P)
traffic images (P)
traffic flow (P)
City of Toledo Traffic Management System
City of Toledo Traffic Management System hri request (P)
hri control data (P)
roadway information system data (P)
signal system configuration (E)
signal control plans (E)
signal control device configuration (E)
signal control commands (P)
traffic sensor control (P)
video surveillance control (P)
City of Toledo Field Equipment
