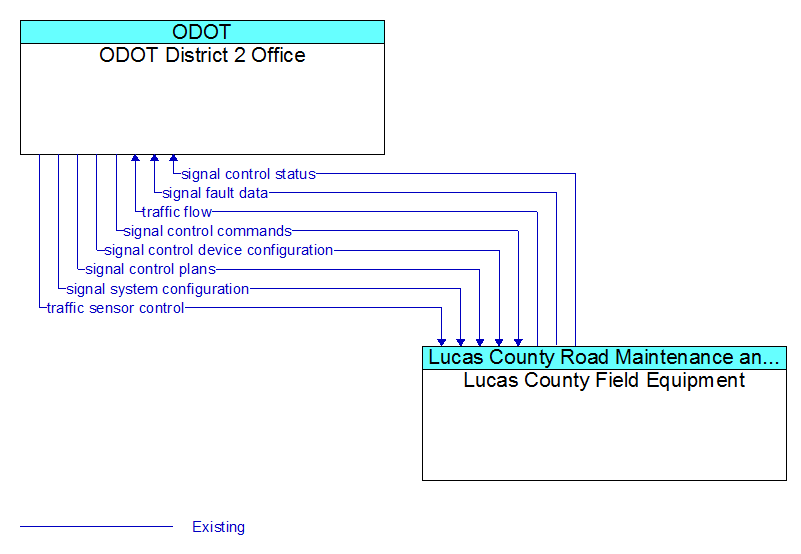

Interconnect: ODOT District 2 Office - Lucas County Field Equipment
(Click on image to view full-size)
(E) = Existing Flow
(P) = Planned/Future Flow
(E/P) = Existing and Planned Flow - Flow appears as Existing and Planned
Source
Architecture Flows
Destination
ODOT District 2 Office
traffic sensor control (E)
signal system configuration (E)
signal control plans (E)
signal control device configuration (E)
signal control commands (E)
Lucas County Field Equipment
Lucas County Field Equipment
traffic flow (E)
signal fault data (E)
signal control status (E)
ODOT District 2 Office
