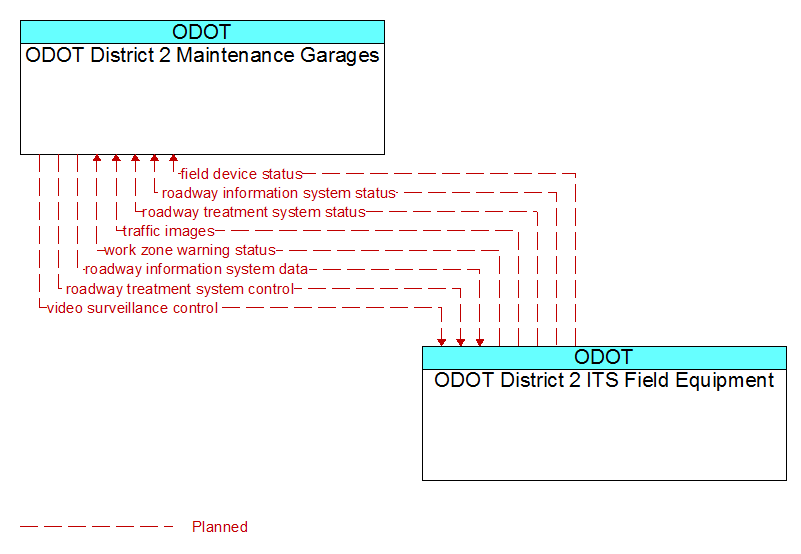

Interconnect: ODOT District 2 Maintenance Garages - ODOT District 2 ITS Field Equipment
(Click on image to view full-size)
(E) = Existing Flow
(P) = Planned/Future Flow
(E/P) = Existing and Planned Flow - Flow appears as Existing and Planned
Source
Architecture Flows
Destination
ODOT District 2 Maintenance Garages
video surveillance control (P)
roadway information system data (P)
roadway treatment system control (P)
ODOT District 2 ITS Field Equipment
ODOT District 2 ITS Field Equipment
work zone warning status (P)
traffic images (P)
roadway information system status (P)
field device status (P)
roadway treatment system status (P)
