Toledo Regional ITS Architecture Update (Final)

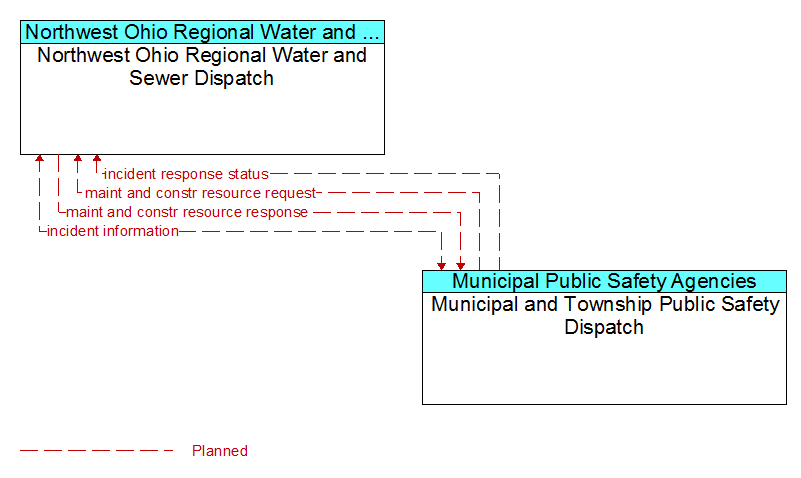

Interconnect: Northwest Ohio Regional Water and Sewer Dispatch - Municipal and Township Public Safety Dispatch

(Click on image to view full-size)
Northwest Ohio Regional Water and Sewer Dispatch - Municipal and Township Public Safety Dispatch

(E) = Existing Flow
(P) = Planned/Future Flow
(E/P) = Existing and Planned Flow - Flow appears as Existing and Planned
SourceArchitecture FlowsDestination
Northwest Ohio Regional Water and Sewer Dispatch maint and constr resource response (P)
incident information (P)
Municipal and Township Public Safety Dispatch
Municipal and Township Public Safety Dispatch maint and constr resource request (P)
incident response status (P)
incident information (P)
Northwest Ohio Regional Water and Sewer Dispatch
