Toledo Regional ITS Architecture Update (Final)

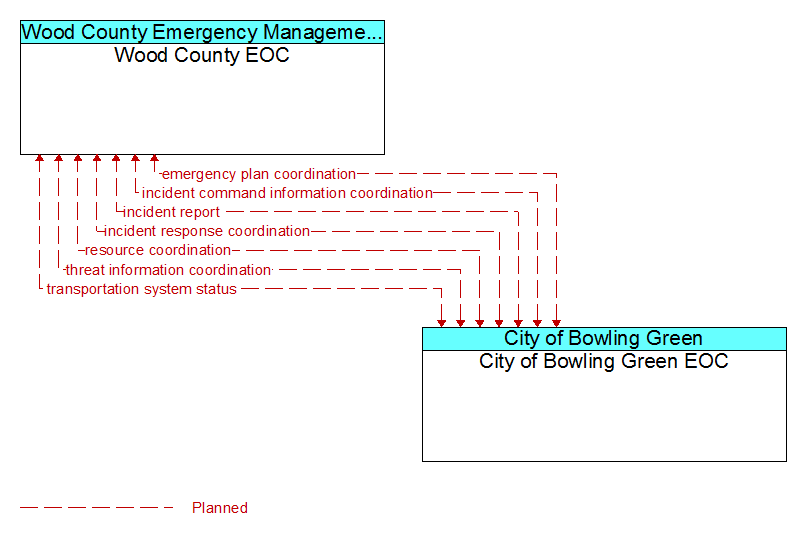

Interconnect: Wood County EOC - City of Bowling Green EOC

(Click on image to view full-size)
Wood County EOC - City of Bowling Green EOC

(E) = Existing Flow
(P) = Planned/Future Flow
(E/P) = Existing and Planned Flow - Flow appears as Existing and Planned
SourceArchitecture FlowsDestination
Wood County EOC transportation system status (P)
resource coordination (P)
incident response coordination (P)
incident command information coordination (P)
emergency plan coordination (P)
threat information coordination (P)
incident report (P)
City of Bowling Green EOC
City of Bowling Green EOC transportation system status (P)
resource coordination (P)
incident response coordination (P)
incident command information coordination (P)
emergency plan coordination (P)
threat information coordination (P)
incident report (P)
Wood County EOC
