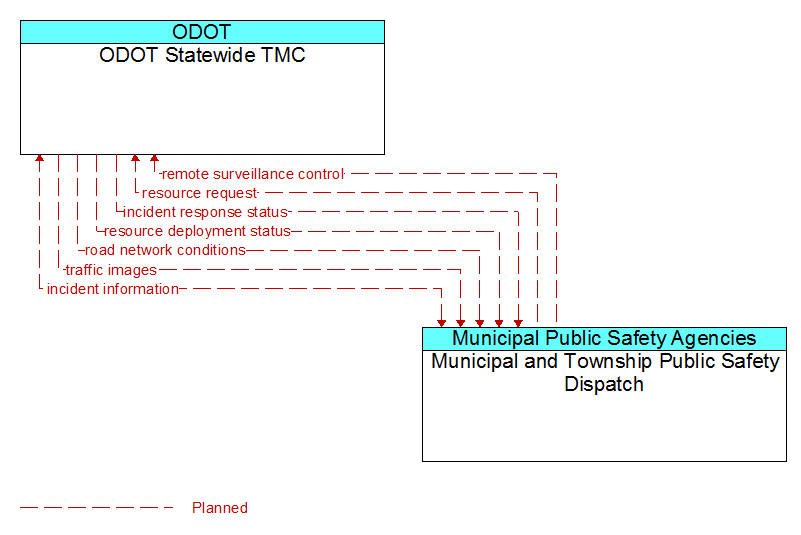

Interconnect: ODOT Statewide TMC - Municipal and Township Public Safety Dispatch
(Click on image to view full-size)
(E) = Existing Flow
(P) = Planned/Future Flow
(E/P) = Existing and Planned Flow - Flow appears as Existing and Planned
Source
Architecture Flows
Destination
ODOT Statewide TMC
traffic images (P)
road network conditions (P)
resource deployment status (P)
incident response status (P)
incident information (P)
Municipal and Township Public Safety Dispatch
Municipal and Township Public Safety Dispatch
resource request (P)
remote surveillance control (P)
incident information (P)
ODOT Statewide TMC
