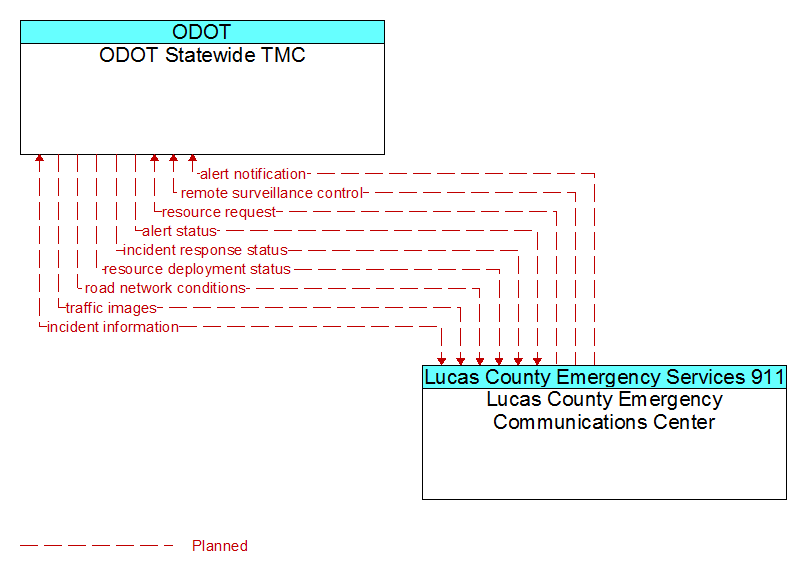

Interconnect: ODOT Statewide TMC - Lucas County Emergency Communications Center
(Click on image to view full-size)
(E) = Existing Flow
(P) = Planned/Future Flow
(E/P) = Existing and Planned Flow - Flow appears as Existing and Planned
Source
Architecture Flows
Destination
ODOT Statewide TMC
alert status (P)
traffic images (P)
resource deployment status (P)
incident response status (P)
incident information (P)
road network conditions (P)
Lucas County Emergency Communications Center
Lucas County Emergency Communications Center
alert notification (P)
resource request (P)
remote surveillance control (P)
incident information (P)
ODOT Statewide TMC
