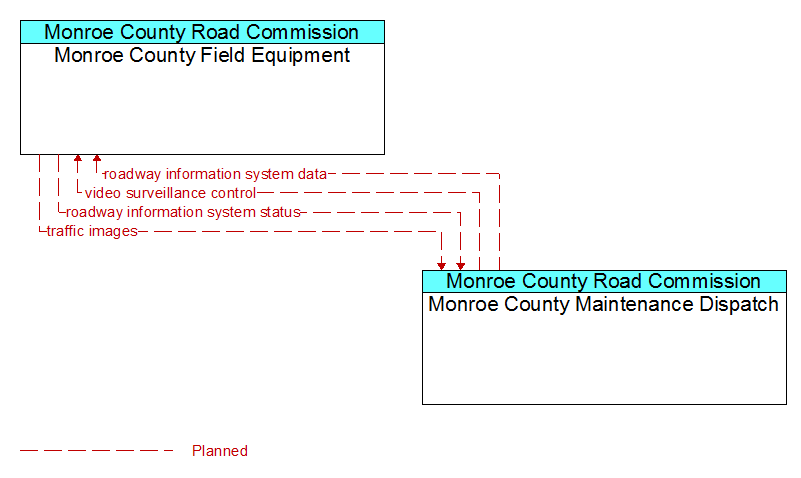

Interconnect: Monroe County Field Equipment - Monroe County Maintenance Dispatch
(Click on image to view full-size)
(E) = Existing Flow
(P) = Planned/Future Flow
(E/P) = Existing and Planned Flow - Flow appears as Existing and Planned
Source
Architecture Flows
Destination
Monroe County Field Equipment
traffic images (P)
roadway information system status (P)
Monroe County Maintenance Dispatch
Monroe County Maintenance Dispatch
video surveillance control (P)
roadway information system data (P)
Monroe County Field Equipment
