Toledo Regional ITS Architecture Update (Final)

Service Packages For: Independent School Districts - APTS06-2

  APTS06-2

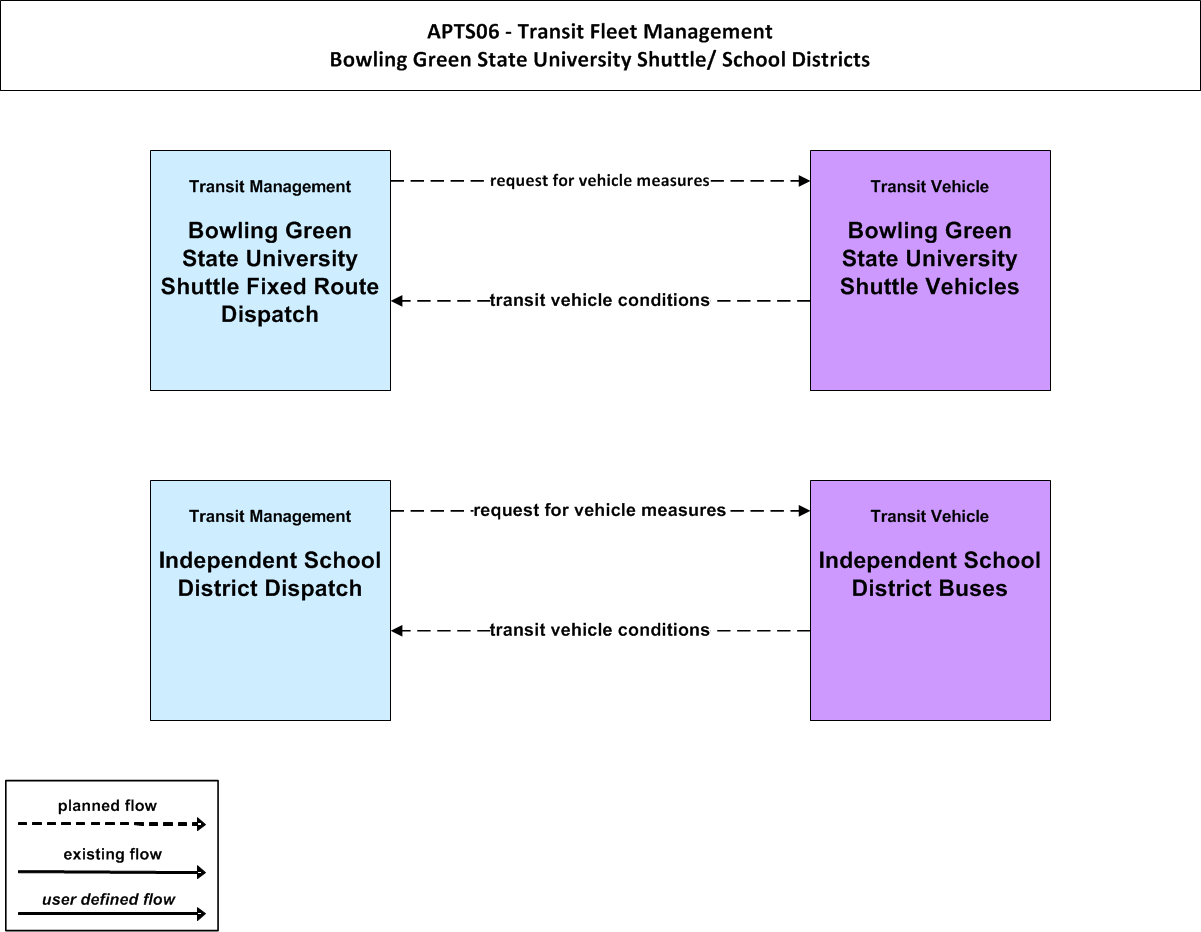

Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
Bowling Green State University Shuttle Fixed Route Dispatch Bowling Green State University Shuttle
Bowling Green State University Shuttle Vehicles Bowling Green State University Shuttle
Independent School District Dispatch Independent School Districts
Independent School District Buses Independent School Districts

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
Bowling Green State University Shuttle Bowling Green State University Shuttle Fixed Route Dispatch Transit Garage Maintenance This equipment package provides advanced maintenance functions for the transit property. It collects operational and maintenance data from transit vehicles, manages vehicle service histories, and monitors operators and vehicles. It collects vehicle mileage data and uses it to automatically generate preventative maintenance schedules for each vehicle by utilizing vehicle tracking data from a prerequisite vehicle tracking equipment package. In addition, it provides information to proper service personnel to support maintenance activities and records and verifies that maintenance work was performed.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
Bowling Green State University Shuttle Fixed Route Dispatch request for vehicle measures Bowling Green State University Shuttle Vehicles
Bowling Green State University Shuttle Vehicles transit vehicle conditions Bowling Green State University Shuttle Fixed Route Dispatch
Independent School District Buses transit vehicle conditions Independent School District Dispatch
Independent School District Dispatch request for vehicle measures Independent School District Buses
