Toledo Regional ITS Architecture Update (Final)

Service Packages For: MC - MC09-1

  MC09-1

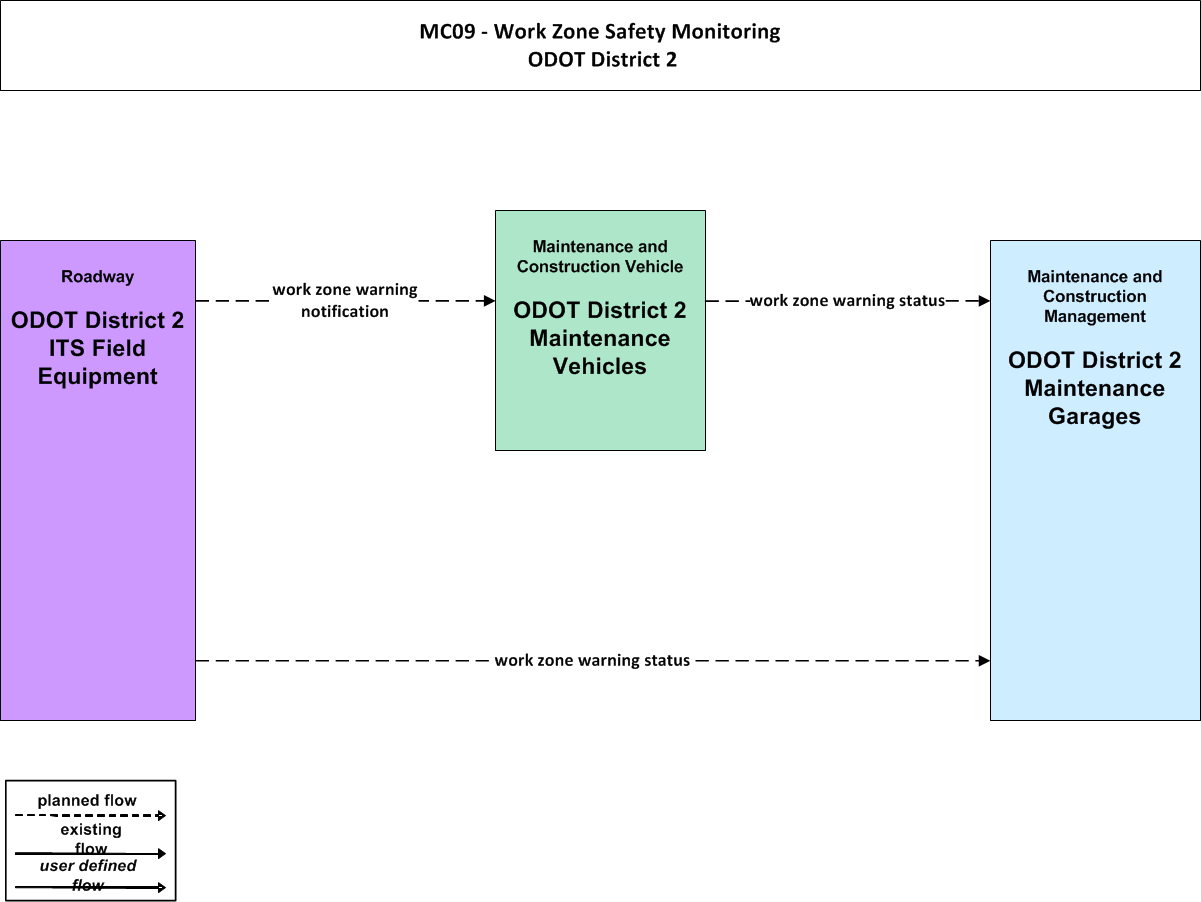

Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
ODOT District 2 Maintenance Vehicles ODOT
ODOT District 2 ITS Field Equipment ODOT
ODOT District 2 Maintenance Garages ODOT

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
ODOT ODOT District 2 Maintenance Garages MCM Work Zone Safety Management This equipment package remotely monitors work zone safety systems that detect vehicle intrusions in work zones and warns crew workers and drivers of imminent encroachment. Crew movements are also monitored so that the crew can be warned of movement beyond the designated safe zone.
ODOT ODOT District 2 Maintenance Vehicles MCV Vehicle Safety Monitoring This equipment package detects vehicle intrusions in the vicinity of the vehicle and warns crew workers and drivers of imminent encroachment. Crew movements are also monitored so that the crew can be warned of movement beyond the designated safe zone. This equipment package can be used for stationary work zones or in mobile applications where a safe zone is maintained around the moving vehicle.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
ODOT District 2 ITS Field Equipment work zone warning status ODOT District 2 Maintenance Garages
ODOT District 2 Maintenance Vehicles work zone warning status ODOT District 2 Maintenance Garages
ODOT District 2 ITS Field Equipment work zone warning notification ODOT District 2 Maintenance Vehicles
