Toledo Regional ITS Architecture Update (Final)

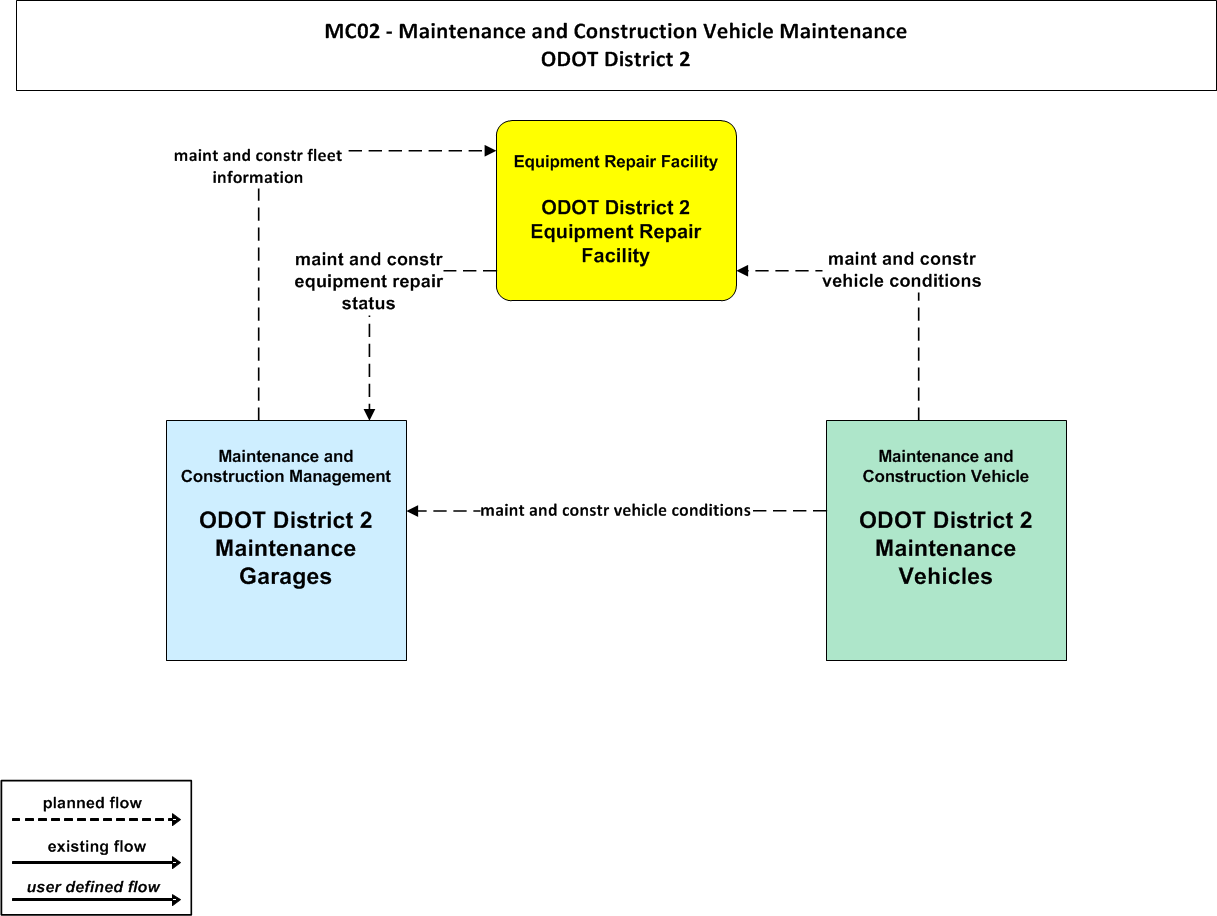

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.

Stakeholder

Element Name

Functional Area/Role

Functional Area Description

MCM Vehicle and Equipment Maintenance Management

This equipment package monitors vehicle and equipment condition, tracks maintenance history, and schedules routine and corrective maintenance based on vehicle utilization and availability schedules.

MCV Vehicle System Monitoring and Diagnostics

This equipment package includes on-board sensors capable of monitoring the condition of each of the vehicle systems and diagnostics that can be used to support vehicle maintenance. The status of the vehicle and ancillary equipment and diagnostic information is provided to the vehicle operator, repair facility, and dispatch center.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.

Source Element

Architecture Flow

Destination Element

maint and constr vehicle conditions

maint and constr equipment repair status

maint and constr vehicle conditions

maint and constr fleet information
