Toledo Regional ITS Architecture Update (Final)

Service Packages For: ATMS - ATMS04-1

  ATMS04-1

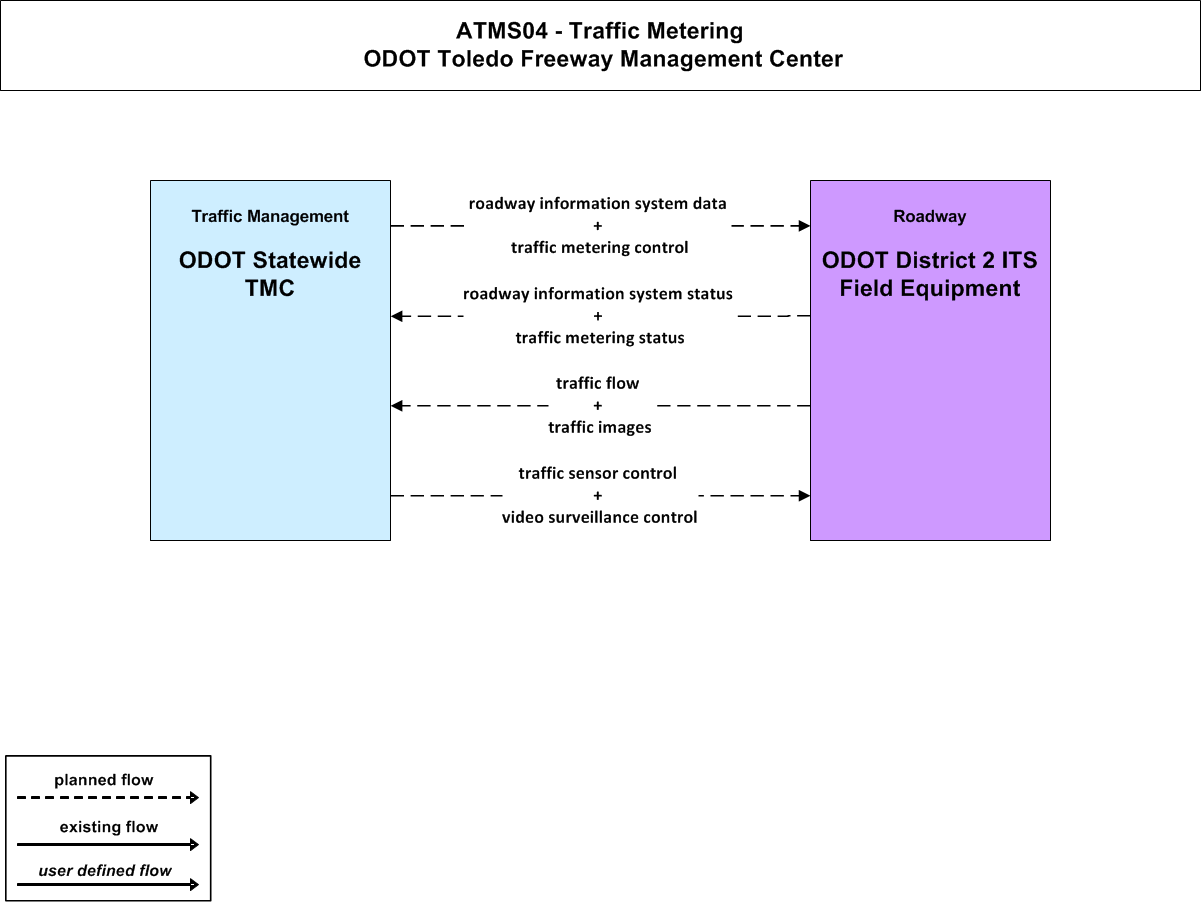

Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
ODOT Statewide TMC ODOT
ODOT District 2 ITS Field Equipment ODOT

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
ODOT ODOT Statewide TMC Collect Traffic Surveillance This equipment package remotely monitors and controls traffic sensors and surveillance (e.g., CCTV) equipment, and collects, processes and stores the collected traffic data. The collected information is provided to traffic operations personnel and made available to other centers.
ODOT ODOT Statewide TMC TMC Traffic Information Dissemination This equipment package disseminates traffic and road conditions, closure and detour information, incident information, driver advisories, and other traffic-related data to other centers, the media, and driver information systems. It monitors and controls driver information system field equipment including dynamic message signs and highway advisory radio, managing dissemination of driver information through these systems.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
ODOT Statewide TMC video surveillance control ODOT District 2 ITS Field Equipment
ODOT Statewide TMC traffic sensor control ODOT District 2 ITS Field Equipment
ODOT Statewide TMC traffic metering control ODOT District 2 ITS Field Equipment
ODOT Statewide TMC roadway information system data ODOT District 2 ITS Field Equipment
ODOT District 2 ITS Field Equipment traffic images ODOT Statewide TMC
ODOT District 2 ITS Field Equipment traffic flow ODOT Statewide TMC
ODOT District 2 ITS Field Equipment traffic metering status ODOT Statewide TMC
ODOT District 2 ITS Field Equipment roadway information system status ODOT Statewide TMC
