Toledo Regional ITS Architecture Update (Final)

Service Packages For: ATMS - ATMS03-1

  ATMS03-1

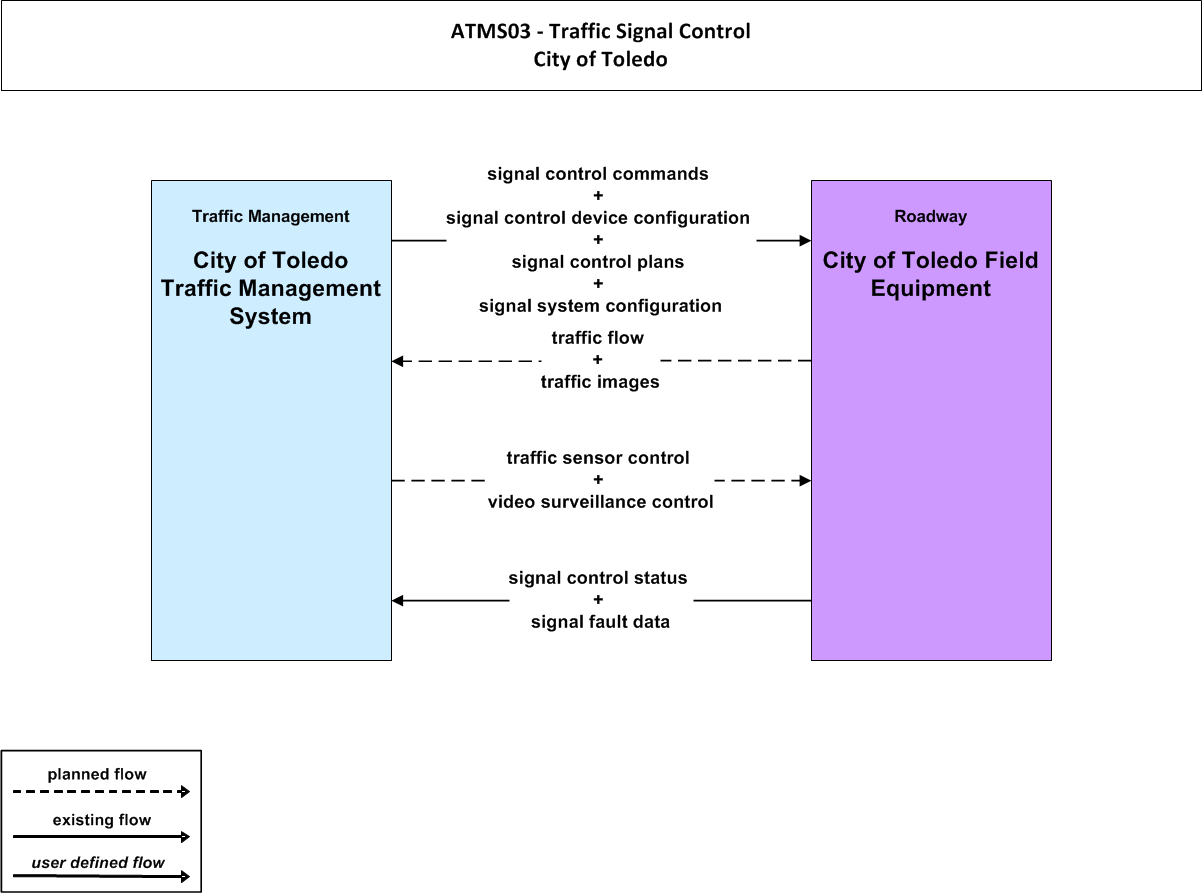

Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
City of Toledo Traffic Management System City of Toledo Division of Transportation
City of Toledo Field Equipment City of Toledo Division of Transportation

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
City of Toledo Division of Transportation City of Toledo Traffic Management System Collect Traffic Surveillance This equipment package remotely monitors and controls traffic sensors and surveillance (e.g., CCTV) equipment, and collects, processes and stores the collected traffic data. The collected information is provided to traffic operations personnel and made available to other centers.
City of Toledo Division of Transportation City of Toledo Traffic Management System TMC Signal Control This equipment package provides the capability for traffic managers to monitor and manage the traffic flow at signalized intersections. This capability includes analyzing and reducing the collected data from traffic surveillance equipment and developing and implementing control plans for signalized intersections. Control plans may be developed and implemented that coordinate signals at many intersections under the domain of a single traffic management subsystem and are responsive to traffic conditions and adapt to support incidents, preemption and priority requests, pedestrian crossing calls, etc.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
City of Toledo Traffic Management System video surveillance control City of Toledo Field Equipment
City of Toledo Traffic Management System traffic sensor control City of Toledo Field Equipment
City of Toledo Traffic Management System signal system configuration City of Toledo Field Equipment
City of Toledo Traffic Management System signal control plans City of Toledo Field Equipment
City of Toledo Traffic Management System signal control device configuration City of Toledo Field Equipment
City of Toledo Traffic Management System signal control commands City of Toledo Field Equipment
City of Toledo Field Equipment traffic images City of Toledo Traffic Management System
City of Toledo Field Equipment traffic flow City of Toledo Traffic Management System
City of Toledo Field Equipment signal fault data City of Toledo Traffic Management System
City of Toledo Field Equipment signal control status City of Toledo Traffic Management System
