Toledo Regional ITS Architecture Update (Final)

Service Packages For: APTS - APTS04-1

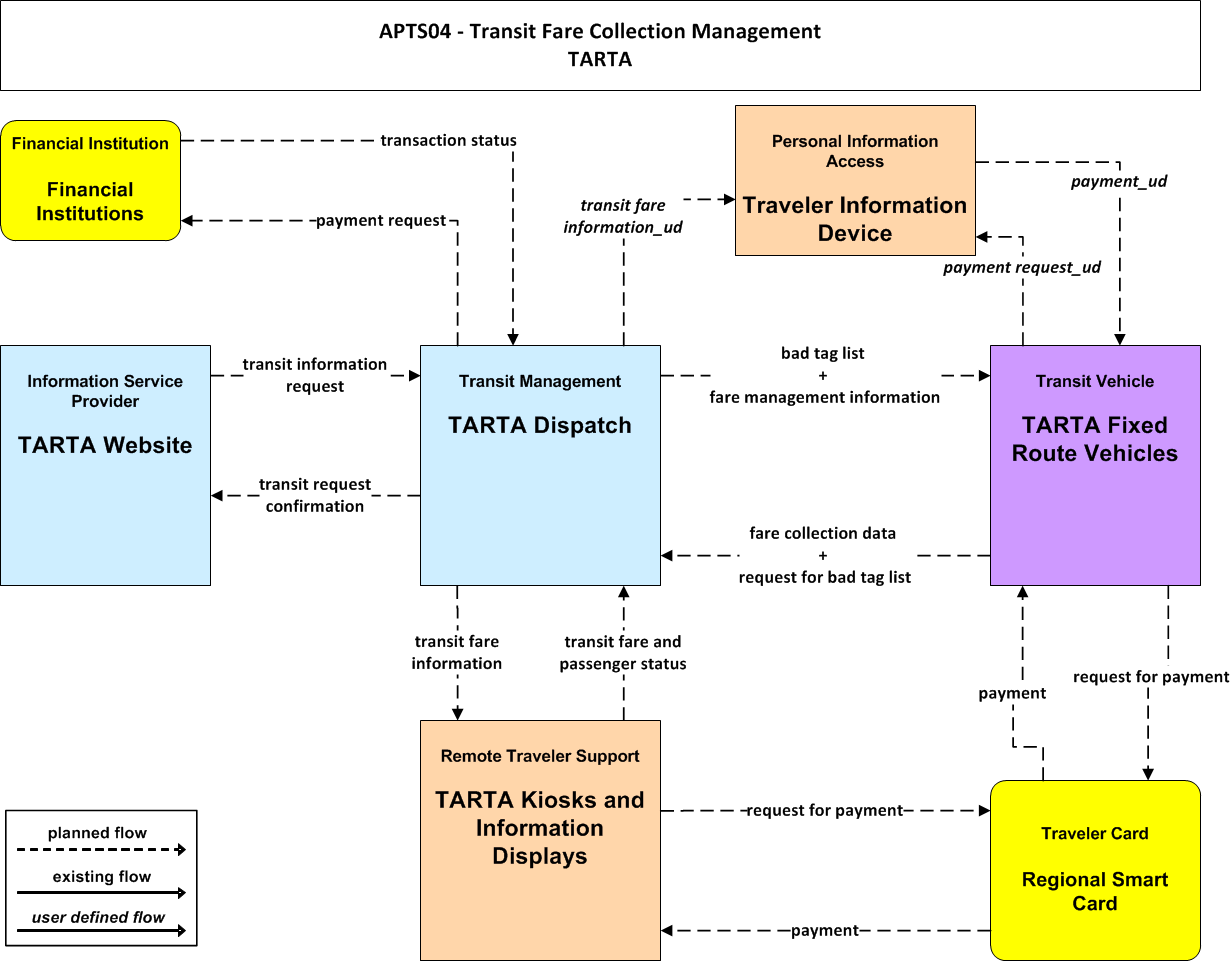

  APTS04-1
Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
Regional Smart Card Toledo Area Regional Transit Authority (TARTA)
TARTA Dispatch Toledo Area Regional Transit Authority (TARTA)
TARTA Kiosks and Information Displays Toledo Area Regional Transit Authority (TARTA)
TARTA Website Toledo Area Regional Transit Authority (TARTA)
TARTA Fixed Route Vehicles Toledo Area Regional Transit Authority (TARTA)
Financial Institutions Financial Institutions
Traveler Information Device Travelers

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
Toledo Area Regional Transit Authority (TARTA) TARTA Kiosks and Information Displays Remote Transit Fare Management This equipment package provides the capability for the traveler to use a common fare medium for transit fares, tolls, and/or parking lot charges. It accepts a service request and means of payment, verifies eligibility, calculates the amount due, collects payment, and identifies payment problems. This equipment package may be implemented using a traveler card reader in a kiosk that includes a communications interface to the financial infrastructure to support payment collection and reconciliation.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
TARTA Dispatch payment request Financial Institutions
TARTA Dispatch transit request confirmation TARTA Website
Traveler Information Device payment_ud TARTA Fixed Route Vehicles
Regional Smart Card payment TARTA Fixed Route Vehicles
TARTA Dispatch fare management information TARTA Fixed Route Vehicles
TARTA Dispatch bad tag list TARTA Fixed Route Vehicles
TARTA Kiosks and Information Displays transit fare and passenger status TARTA Dispatch
TARTA Fixed Route Vehicles fare collection data TARTA Dispatch
TARTA Website transit information request TARTA Dispatch
Financial Institutions transaction status TARTA Dispatch
TARTA Fixed Route Vehicles request for bad tag list TARTA Dispatch
TARTA Kiosks and Information Displays request for payment Regional Smart Card
TARTA Fixed Route Vehicles request for payment Regional Smart Card
Regional Smart Card payment TARTA Kiosks and Information Displays
TARTA Dispatch transit fare information TARTA Kiosks and Information Displays
TARTA Dispatch transit fare information_ud Traveler Information Device
TARTA Fixed Route Vehicles payment request_ud Traveler Information Device
