KIPDA Regional ITS Architecture

Service Packages For: Jefferson County Fire Service - EM01-01

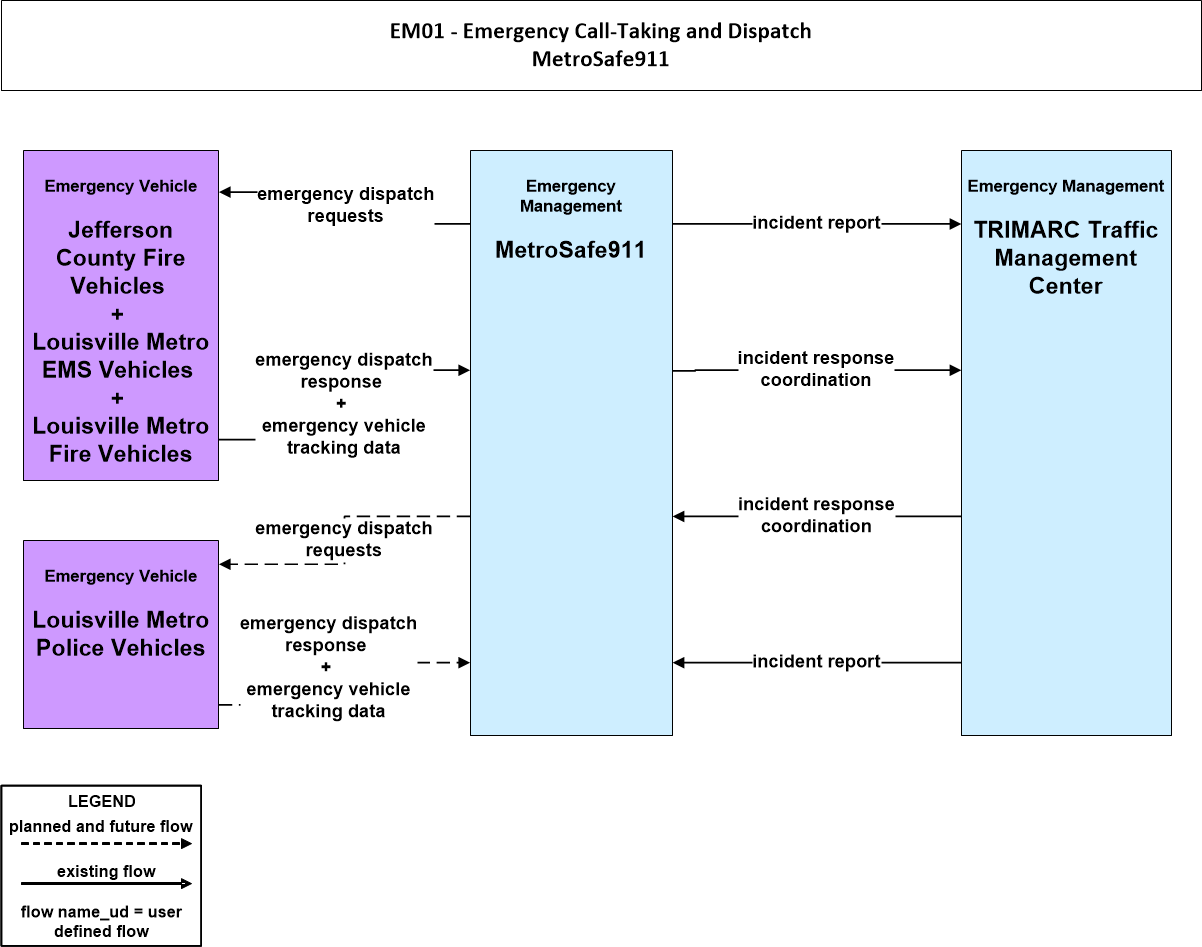

  EM01-01
Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
TRIMARC Traffic Management Center TRIMARC
MetroSafe911 Louisville Metro Emergency Services
Jefferson County Fire Vehicles Jefferson County Fire Service
Louisville Metro EMS Vehicles Louisville Metro Emergency Services
Louisville Metro Fire Vehicles Louisville Fire Department
Louisville Metro Police Vehicles Louisville Metro Police

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
Louisville Fire Department Louisville Metro Fire Vehicles On-board EV En Route Support This on-board equipment package supports dispatch, routing, and tracking of an emergency vehicle. Dispatch and routing information are received and presented to the driver and vehicle location and status are tracked and provided back to the dispatcher. This equipment package supports traffic signal preemption via short range communication directly with signal control equipment and sends alert messages to surrounding vehicles. It also supports communications with care facilities, sharing patient status and care facility status between the en route emergency vehicle and the care facility.
Louisville Metro Emergency Services Louisville Metro EMS Vehicles On-board EV En Route Support This on-board equipment package supports dispatch, routing, and tracking of an emergency vehicle. Dispatch and routing information are received and presented to the driver and vehicle location and status are tracked and provided back to the dispatcher. This equipment package supports traffic signal preemption via short range communication directly with signal control equipment and sends alert messages to surrounding vehicles. It also supports communications with care facilities, sharing patient status and care facility status between the en route emergency vehicle and the care facility.
Louisville Metro Emergency Services MetroSafe911 Emergency Dispatch This equipment package tracks the location and status of emergency vehicles and dispatches these vehicles to incidents. Pertinent incident information is gathered from the public and other public safety agencies (see the Emergency Call-Taking equipment package) and relayed to the responding units. Incident status and the status of the responding units is tracked so that additional units can be dispatched and/or unit status can be returned to available when the incident is cleared and closed.
Louisville Metro Emergency Services MetroSafe911 Emergency Call-Taking This equipment package supports the emergency call-taker, collecting available information about the caller and the reported emergency, and forwarding this information to other equipment packages that formulate and manage the emergency response. This equipment package receives 9-1-1, 7-digit local access, and motorist call-box calls and interfaces to other agencies to assist in the verification and assessment of the emergency and to forward the emergency information to the appropriate response agency.
Louisville Metro Police Louisville Metro Police Vehicles On-board EV En Route Support This on-board equipment package supports dispatch, routing, and tracking of an emergency vehicle. Dispatch and routing information are received and presented to the driver and vehicle location and status are tracked and provided back to the dispatcher. This equipment package supports traffic signal preemption via short range communication directly with signal control equipment and sends alert messages to surrounding vehicles. It also supports communications with care facilities, sharing patient status and care facility status between the en route emergency vehicle and the care facility.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
MetroSafe911 incident report TRIMARC Traffic Management Center
MetroSafe911 incident response coordination TRIMARC Traffic Management Center
MetroSafe911 emergency dispatch requests Louisville Metro Police Vehicles
MetroSafe911 emergency dispatch requests Louisville Metro Fire Vehicles
MetroSafe911 emergency dispatch requests Louisville Metro EMS Vehicles
TRIMARC Traffic Management Center incident response coordination MetroSafe911
TRIMARC Traffic Management Center incident report MetroSafe911
Louisville Metro EMS Vehicles emergency dispatch response MetroSafe911
Louisville Metro Fire Vehicles emergency dispatch response MetroSafe911
Jefferson County Fire Vehicles emergency vehicle tracking data MetroSafe911
Louisville Metro EMS Vehicles emergency vehicle tracking data MetroSafe911
Louisville Metro Fire Vehicles emergency vehicle tracking data MetroSafe911
Louisville Metro Police Vehicles emergency dispatch response MetroSafe911
Louisville Metro Police Vehicles emergency vehicle tracking data MetroSafe911
Jefferson County Fire Vehicles emergency dispatch response MetroSafe911
MetroSafe911 emergency dispatch requests Jefferson County Fire Vehicles
