KIPDA Regional ITS Architecture

Service Packages For: Local Media - ATIS01-02

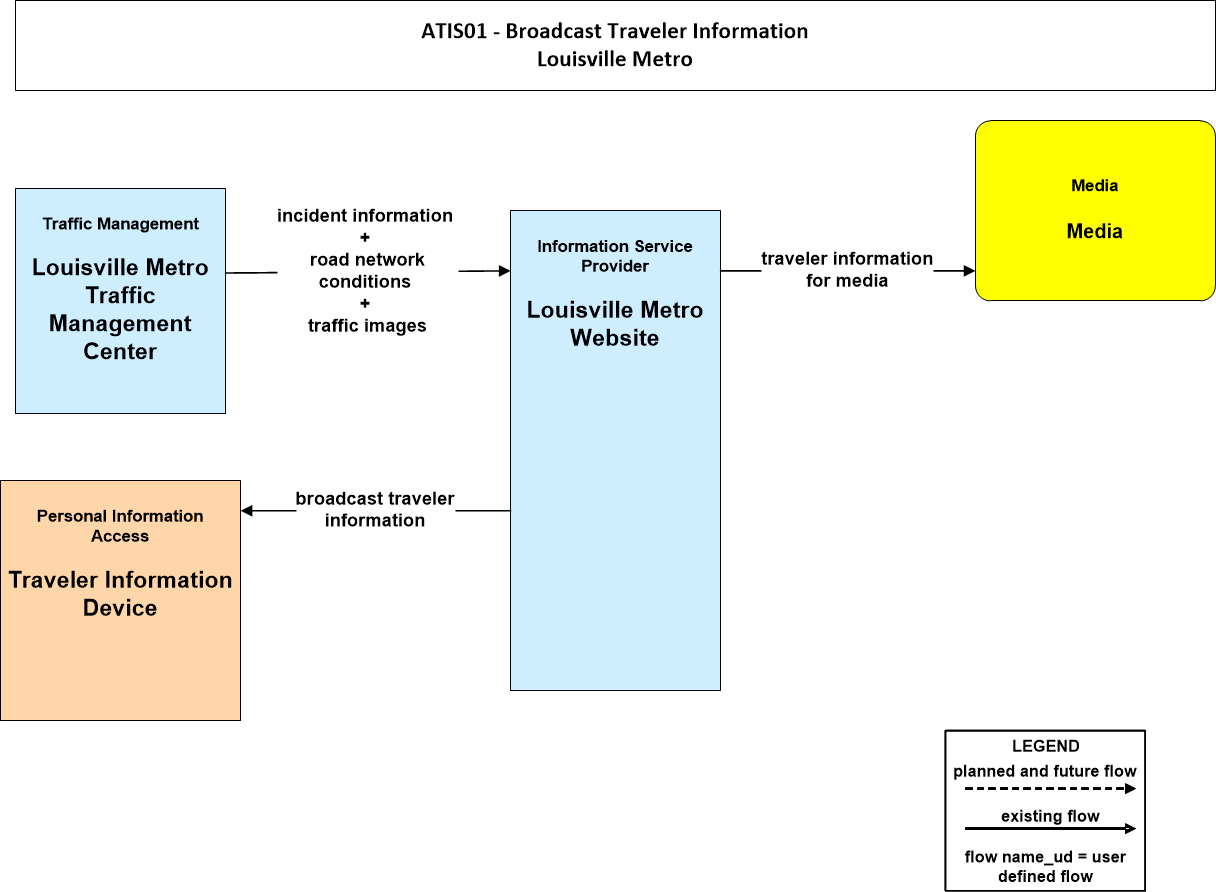

  ATIS01-02
Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
Louisville Metro Website Louisville Metro Traffic
Media Local Media
Louisville Metro Traffic Management Center Louisville Metro Traffic
Traveler Information Device Travelers

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
Louisville Metro Traffic Louisville Metro Website Basic Information Broadcast This equipment package disseminates traveler information including traffic and road conditions, incident information, maintenance and construction information, event information, transit information, parking information, and weather information. The same information is broadcast to all equipped traveler interface systems and vehicles.
Travelers Traveler Information Device Personal Basic Information Reception This equipment package receives formatted traffic advisories, road conditions, transit information, broadcast alerts, and other general traveler information broadcasts and presents the information to the traveler. The traveler information broadcasts are received by personal devices including personal computers and personal portable devices such as personal digital assistants (PDAs) and pagers.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
Louisville Metro Website traveler information for media Media
Louisville Metro Website broadcast traveler information Traveler Information Device
Louisville Metro Traffic Management Center traffic images Louisville Metro Website
Louisville Metro Traffic Management Center road network conditions Louisville Metro Website
Louisville Metro Traffic Management Center incident information Louisville Metro Website
