KIPDA Regional ITS Architecture

Service Packages For: TRIMARC - MC10-1

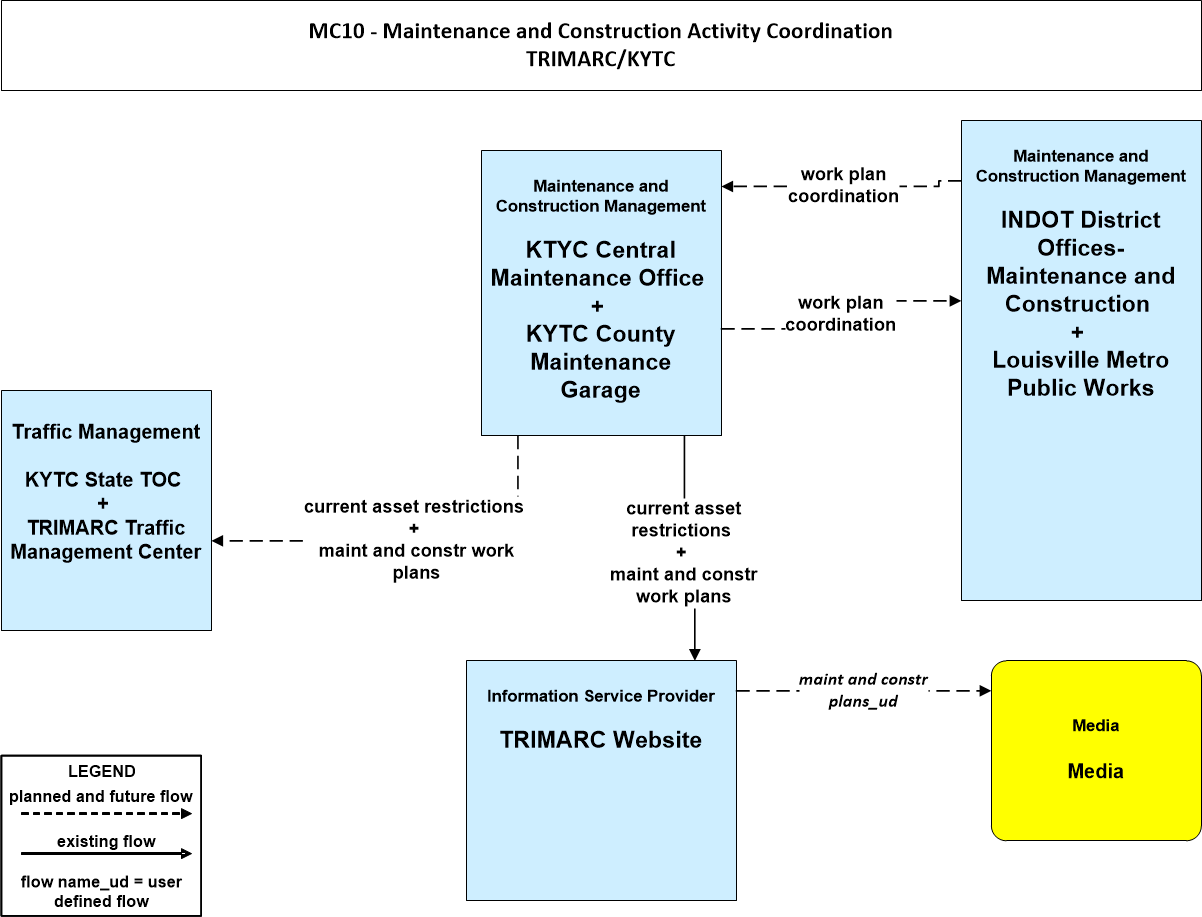

  MC10-1
Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
KTYC Central Maintenance Office KYTC
KYTC County Maintenance Garage KYTC
KYTC State TOC KYTC
TRIMARC Traffic Management Center TRIMARC
TRIMARC Website TRIMARC
INDOT District Offices-Maintenance and Construction INDOT
Louisville Metro Public Works Louisville Metro Public Works
Media Local Media

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
INDOT INDOT District Offices-Maintenance and Construction MCM Work Activity Coordination This equipment package disseminates work activity schedules and current asset restrictions to other agencies. Work schedules are coordinated with operating agencies, factoring in the needs and activities of other agencies and adjacent jurisdictions. Work schedules are also distributed to Information Service Providers for dissemination to the traveling public.
Louisville Metro Public Works Louisville Metro Public Works MCM Work Activity Coordination This equipment package disseminates work activity schedules and current asset restrictions to other agencies. Work schedules are coordinated with operating agencies, factoring in the needs and activities of other agencies and adjacent jurisdictions. Work schedules are also distributed to Information Service Providers for dissemination to the traveling public.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
KTYC Central Maintenance Office work plan coordination INDOT District Offices-Maintenance and Construction
KYTC County Maintenance Garage work plan coordination INDOT District Offices-Maintenance and Construction
KYTC County Maintenance Garage current asset restrictions KYTC State TOC
KYTC County Maintenance Garage maint and constr work plans KYTC State TOC
KTYC Central Maintenance Office maint and constr work plans KYTC State TOC
KTYC Central Maintenance Office current asset restrictions KYTC State TOC
KTYC Central Maintenance Office work plan coordination Louisville Metro Public Works
KYTC County Maintenance Garage work plan coordination Louisville Metro Public Works
TRIMARC Website maint and constr plans_ud Media
KYTC County Maintenance Garage current asset restrictions TRIMARC Traffic Management Center
KTYC Central Maintenance Office maint and constr work plans TRIMARC Traffic Management Center
KYTC County Maintenance Garage maint and constr work plans TRIMARC Traffic Management Center
KTYC Central Maintenance Office current asset restrictions TRIMARC Traffic Management Center
KTYC Central Maintenance Office current asset restrictions TRIMARC Website
KYTC County Maintenance Garage current asset restrictions TRIMARC Website
KTYC Central Maintenance Office maint and constr work plans TRIMARC Website
KYTC County Maintenance Garage maint and constr work plans TRIMARC Website
INDOT District Offices-Maintenance and Construction work plan coordination KYTC County Maintenance Garage
Louisville Metro Public Works work plan coordination KYTC County Maintenance Garage
Louisville Metro Public Works work plan coordination KTYC Central Maintenance Office
INDOT District Offices-Maintenance and Construction work plan coordination KTYC Central Maintenance Office
