KIPDA Regional ITS Architecture

Service Packages For: KYTC - EM04-01


  EM04-01

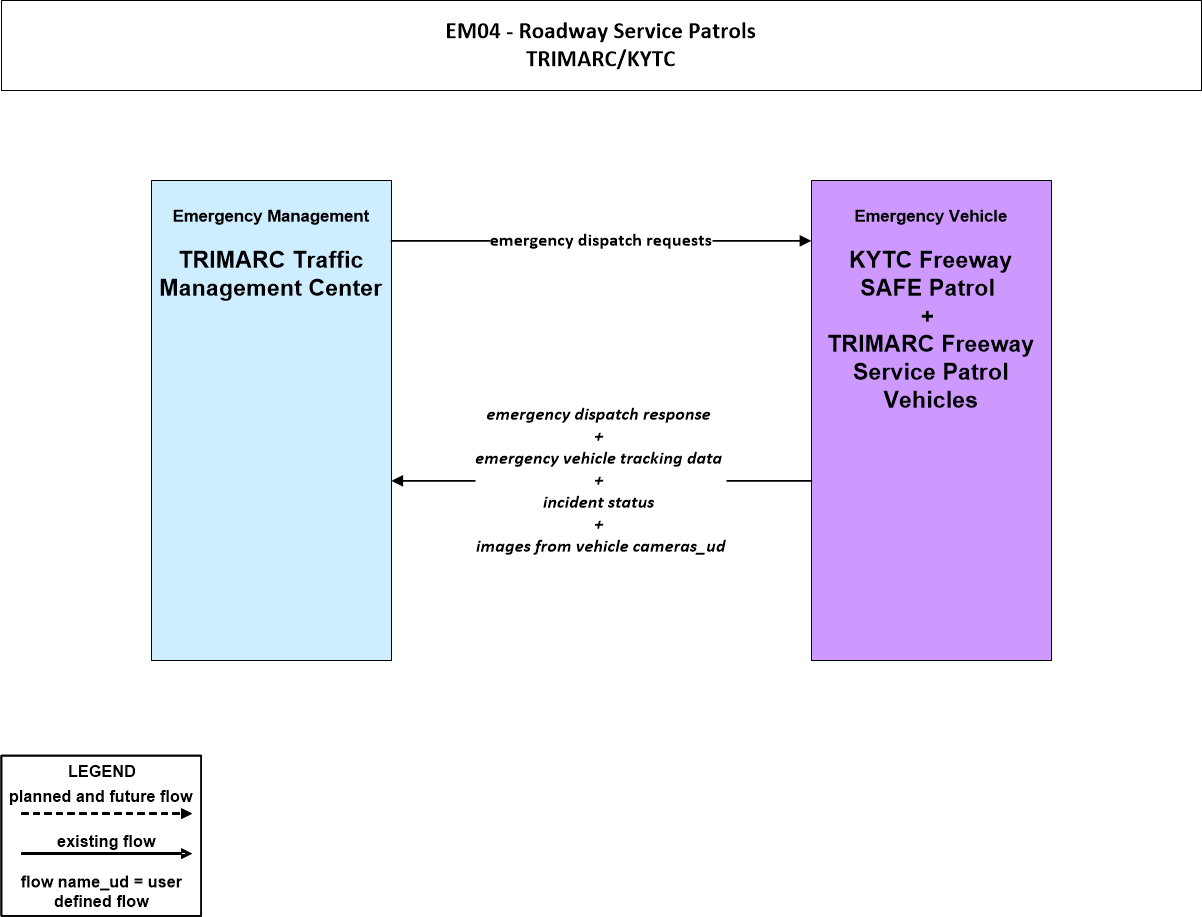

Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
TRIMARC Traffic Management Center TRIMARC
KYTC Freeway SAFE Patrol KYTC
TRIMARC Freeway Service Patrol Vehicles TRIMARC

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
KYTC KYTC Freeway SAFE Patrol On-board EV Incident Management Communication This on-board equipment package provides communications support to first responders. Information about the incident, information on dispatched resources, and ancillary information such as road and weather conditions are provided to emergency personnel. Emergency personnel transmit information about the incident such as identification of vehicles and people involved, the extent of injuries, hazardous material, resources on site, site management strategies in effect, and current clearance status. Emergency personnel may also send in-vehicle signing messages to approaching traffic using short range communications.
KYTC KYTC Freeway SAFE Patrol On-board EV En Route Support This on-board equipment package supports dispatch, routing, and tracking of an emergency vehicle. Dispatch and routing information are received and presented to the driver and vehicle location and status are tracked and provided back to the dispatcher. This equipment package supports traffic signal preemption via short range communication directly with signal control equipment and sends alert messages to surrounding vehicles. It also supports communications with care facilities, sharing patient status and care facility status between the en route emergency vehicle and the care facility.
TRIMARC TRIMARC Freeway Service Patrol Vehicles On-board EV Incident Management Communication This on-board equipment package provides communications support to first responders. Information about the incident, information on dispatched resources, and ancillary information such as road and weather conditions are provided to emergency personnel. Emergency personnel transmit information about the incident such as identification of vehicles and people involved, the extent of injuries, hazardous material, resources on site, site management strategies in effect, and current clearance status. Emergency personnel may also send in-vehicle signing messages to approaching traffic using short range communications.
TRIMARC TRIMARC Freeway Service Patrol Vehicles On-board EV En Route Support This on-board equipment package supports dispatch, routing, and tracking of an emergency vehicle. Dispatch and routing information are received and presented to the driver and vehicle location and status are tracked and provided back to the dispatcher. This equipment package supports traffic signal preemption via short range communication directly with signal control equipment and sends alert messages to surrounding vehicles. It also supports communications with care facilities, sharing patient status and care facility status between the en route emergency vehicle and the care facility.
TRIMARC TRIMARC Traffic Management Center Service Patrol Management This equipment package supports dispatch and communication with roadway service patrol vehicles that monitor roads to aid motorists, offering rapid response to minor incidents.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
TRIMARC Traffic Management Center emergency dispatch requests TRIMARC Freeway Service Patrol Vehicles
TRIMARC Freeway Service Patrol Vehicles images from vehicle cameras_ud TRIMARC Traffic Management Center
KYTC Freeway SAFE Patrol images from vehicle cameras_ud TRIMARC Traffic Management Center
TRIMARC Freeway Service Patrol Vehicles incident status TRIMARC Traffic Management Center
KYTC Freeway SAFE Patrol incident status TRIMARC Traffic Management Center
TRIMARC Freeway Service Patrol Vehicles emergency vehicle tracking data TRIMARC Traffic Management Center
KYTC Freeway SAFE Patrol emergency vehicle tracking data TRIMARC Traffic Management Center
TRIMARC Freeway Service Patrol Vehicles emergency dispatch response TRIMARC Traffic Management Center
KYTC Freeway SAFE Patrol emergency dispatch response TRIMARC Traffic Management Center
TRIMARC Traffic Management Center emergency dispatch requests KYTC Freeway SAFE Patrol
