KIPDA Regional ITS Architecture

Service Packages For: Louisville Metro Emergency Services - ATMS08-07


  ATMS08-07

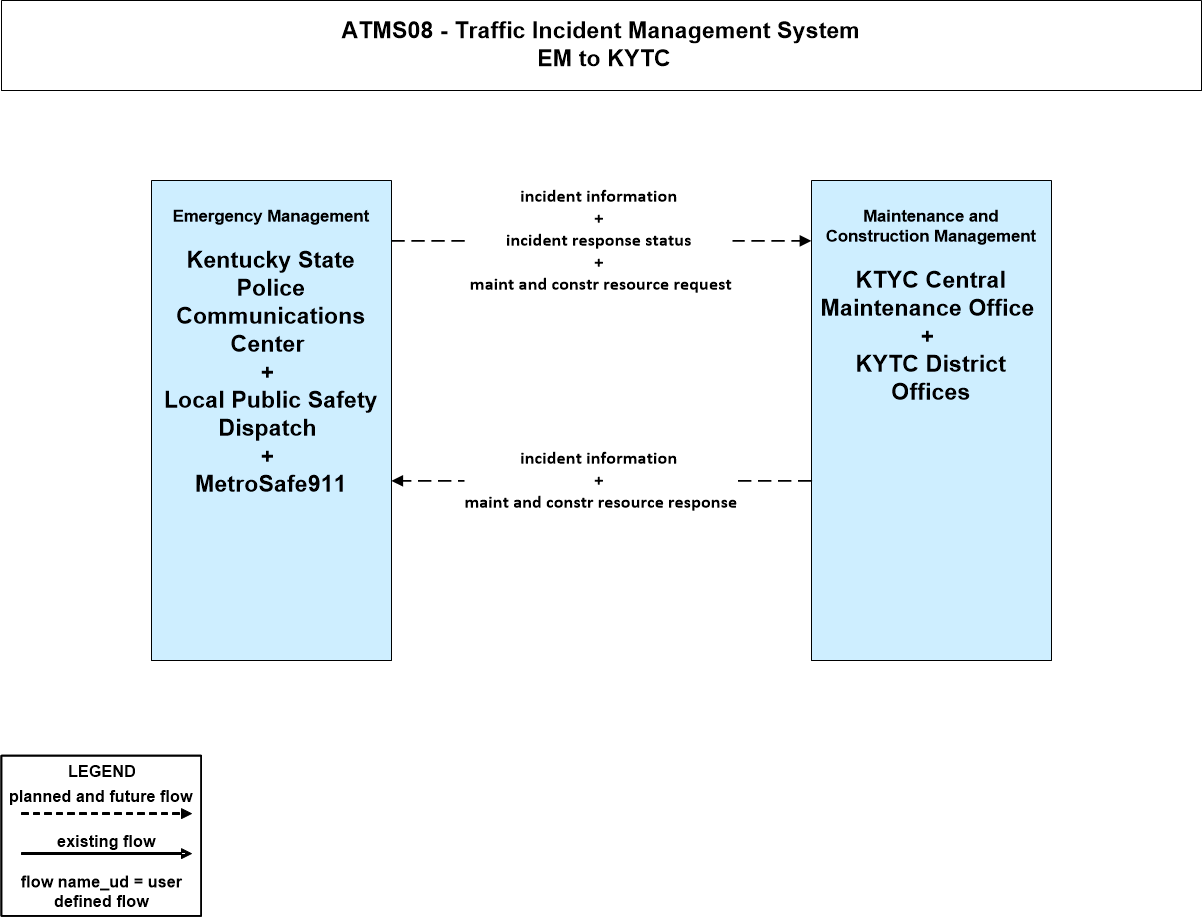

Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
KTYC Central Maintenance Office KYTC
KYTC District Offices KYTC
Kentucky State Police Communications Center Kentucky Justice Cabinet
Local Public Safety Dispatch Local Governments
MetroSafe911 Louisville Metro Emergency Services

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
Kentucky Justice Cabinet Kentucky State Police Communications Center Incident Command The equipment package provides tactical decision support, resource coordination, and communications integration for Incident Commands that are established by first responders at or near the incident scene to support local management of an incident. The equipment package supports communications with public safety, emergency management, transportation, and other allied response agency centers, tracks and maintains resource information, action plans, and the incident command organization itself. Information is shared with agency centers including resource deployment status, hazardous material information, traffic, road, and weather conditions, evacuation advice, and other information that enables emergency or maintenance personnel in the field to implement an effective, safe incident response. This equipment package supports the functions and interfaces commonly supported by a mobile command center.
Kentucky Justice Cabinet Kentucky State Police Communications Center Emergency Response Management This equipment package provides the strategic emergency response capabilities and broad inter-agency interfaces that are implemented for extraordinary incidents and disasters that require response from outside the local community. It provides the functional capabilities and interfaces commonly associated with Emergency Operations Centers. This equipment package develops and stores emergency response plans and manages overall coordinated response to emergencies. It monitors real-time information on the state of the regional transportation system including current traffic and road conditions, weather conditions, special event and incident information. It tracks the availability of resources and assists in the appropriate allocation of these resources for a particular emergency response. This equipment package provides coordination between multiple allied agencies before and during emergencies to implement emergency response plans and track progress through the incident. It also coordinates with the public through the Emergency Telecommunication Systems (e.g., Reverse 911). This equipment package coordinates with public health systems to provide the most appropriate response for emergencies involving biological or other medical hazards.
KYTC KYTC District Offices MCM Incident Management This equipment package supports maintenance and construction participation in coordinated incident response. Incident notifications are shared, incident response resources are managed, and the overall incident situation and incident response status is coordinated among allied response organizations.
Local Governments Local Public Safety Dispatch Incident Command The equipment package provides tactical decision support, resource coordination, and communications integration for Incident Commands that are established by first responders at or near the incident scene to support local management of an incident. The equipment package supports communications with public safety, emergency management, transportation, and other allied response agency centers, tracks and maintains resource information, action plans, and the incident command organization itself. Information is shared with agency centers including resource deployment status, hazardous material information, traffic, road, and weather conditions, evacuation advice, and other information that enables emergency or maintenance personnel in the field to implement an effective, safe incident response. This equipment package supports the functions and interfaces commonly supported by a mobile command center.
Local Governments Local Public Safety Dispatch Emergency Response Management This equipment package provides the strategic emergency response capabilities and broad inter-agency interfaces that are implemented for extraordinary incidents and disasters that require response from outside the local community. It provides the functional capabilities and interfaces commonly associated with Emergency Operations Centers. This equipment package develops and stores emergency response plans and manages overall coordinated response to emergencies. It monitors real-time information on the state of the regional transportation system including current traffic and road conditions, weather conditions, special event and incident information. It tracks the availability of resources and assists in the appropriate allocation of these resources for a particular emergency response. This equipment package provides coordination between multiple allied agencies before and during emergencies to implement emergency response plans and track progress through the incident. It also coordinates with the public through the Emergency Telecommunication Systems (e.g., Reverse 911). This equipment package coordinates with public health systems to provide the most appropriate response for emergencies involving biological or other medical hazards.
Louisville Metro Emergency Services MetroSafe911 Emergency Response Management This equipment package provides the strategic emergency response capabilities and broad inter-agency interfaces that are implemented for extraordinary incidents and disasters that require response from outside the local community. It provides the functional capabilities and interfaces commonly associated with Emergency Operations Centers. This equipment package develops and stores emergency response plans and manages overall coordinated response to emergencies. It monitors real-time information on the state of the regional transportation system including current traffic and road conditions, weather conditions, special event and incident information. It tracks the availability of resources and assists in the appropriate allocation of these resources for a particular emergency response. This equipment package provides coordination between multiple allied agencies before and during emergencies to implement emergency response plans and track progress through the incident. It also coordinates with the public through the Emergency Telecommunication Systems (e.g., Reverse 911). This equipment package coordinates with public health systems to provide the most appropriate response for emergencies involving biological or other medical hazards.
Louisville Metro Emergency Services MetroSafe911 Incident Command The equipment package provides tactical decision support, resource coordination, and communications integration for Incident Commands that are established by first responders at or near the incident scene to support local management of an incident. The equipment package supports communications with public safety, emergency management, transportation, and other allied response agency centers, tracks and maintains resource information, action plans, and the incident command organization itself. Information is shared with agency centers including resource deployment status, hazardous material information, traffic, road, and weather conditions, evacuation advice, and other information that enables emergency or maintenance personnel in the field to implement an effective, safe incident response. This equipment package supports the functions and interfaces commonly supported by a mobile command center.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
KTYC Central Maintenance Office incident information Local Public Safety Dispatch
KYTC District Offices incident information Local Public Safety Dispatch
KTYC Central Maintenance Office maint and constr resource response Local Public Safety Dispatch
KYTC District Offices maint and constr resource response Local Public Safety Dispatch
KYTC District Offices incident information Kentucky State Police Communications Center
KYTC District Offices maint and constr resource response Kentucky State Police Communications Center
KTYC Central Maintenance Office maint and constr resource response Kentucky State Police Communications Center
KTYC Central Maintenance Office incident information Kentucky State Police Communications Center
MetroSafe911 incident information KYTC District Offices
Local Public Safety Dispatch incident information KYTC District Offices
Local Public Safety Dispatch incident response status KYTC District Offices
Kentucky State Police Communications Center incident information KYTC District Offices
Kentucky State Police Communications Center incident response status KYTC District Offices
MetroSafe911 incident response status KYTC District Offices
Local Public Safety Dispatch maint and constr resource request KYTC District Offices
MetroSafe911 maint and constr resource request KYTC District Offices
Kentucky State Police Communications Center maint and constr resource request KYTC District Offices
Kentucky State Police Communications Center incident information KTYC Central Maintenance Office
MetroSafe911 incident response status KTYC Central Maintenance Office
MetroSafe911 maint and constr resource request KTYC Central Maintenance Office
Local Public Safety Dispatch incident response status KTYC Central Maintenance Office
Kentucky State Police Communications Center maint and constr resource request KTYC Central Maintenance Office
Kentucky State Police Communications Center incident response status KTYC Central Maintenance Office
Local Public Safety Dispatch maint and constr resource request KTYC Central Maintenance Office
MetroSafe911 incident information KTYC Central Maintenance Office
Local Public Safety Dispatch incident information KTYC Central Maintenance Office
KYTC District Offices maint and constr resource response MetroSafe911
KTYC Central Maintenance Office incident information MetroSafe911
KYTC District Offices incident information MetroSafe911
KTYC Central Maintenance Office maint and constr resource response MetroSafe911
