Service Packages For: INDOT - AD01-02


  AD01-02

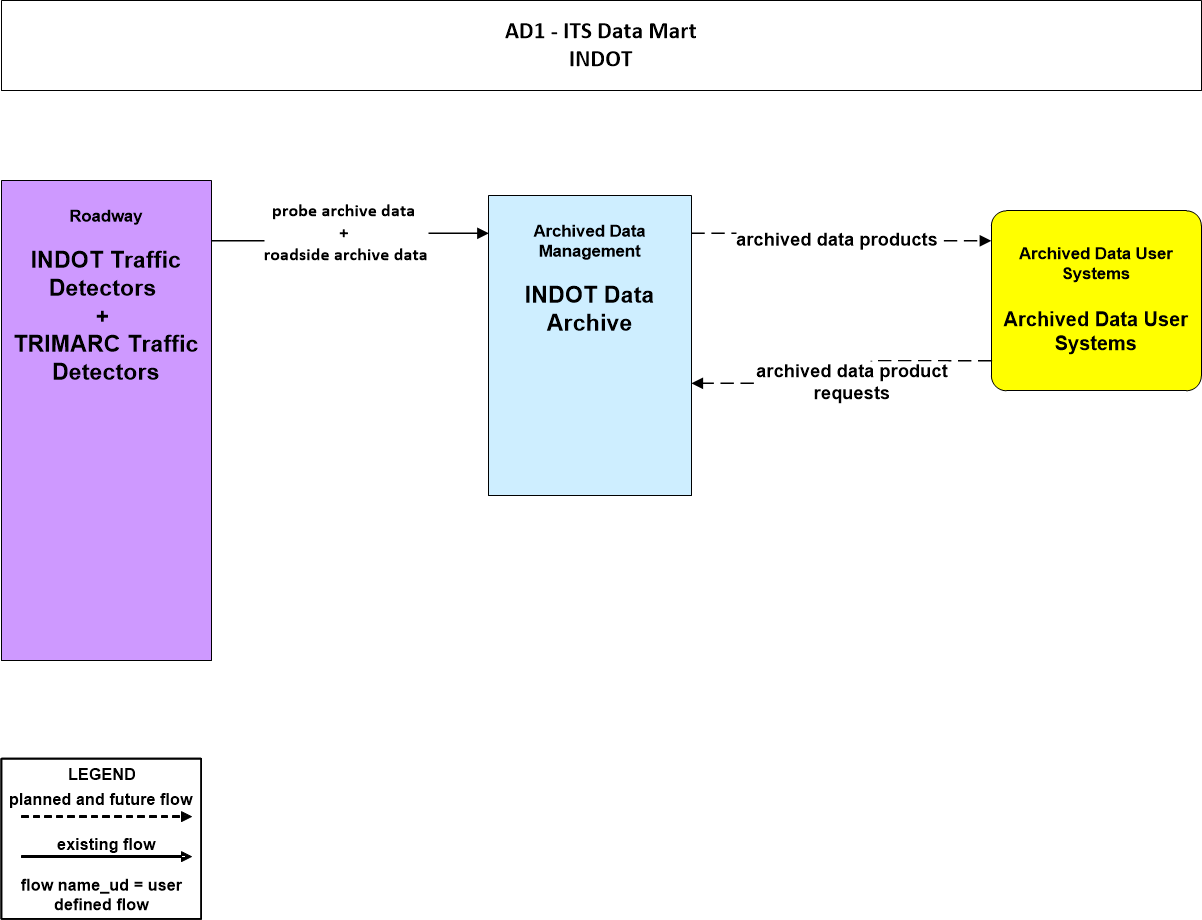

Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
Archived Data User Systems KYTC
INDOT Traffic Detectors INDOT
TRIMARC Traffic Detectors TRIMARC
INDOT Data Archive INDOT

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
INDOT INDOT Data Archive Traffic and Roadside Data Archival This equipment package collects and archives traffic, roadway, and environmental information for use in off-line planning, research, and analysis. The equipment package controls and collects information directly from equipment at the roadside, reflecting the deployment of traffic detectors that are used primarily for traffic monitoring and planning purposes rather than for traffic management.
INDOT INDOT Data Archive ITS Data Repository This equipment package collects data and data catalogs from one or more data sources and stores the data in a focused repository that is suited to a particular set of ITS data users. This equipment package includes capabilities for performing quality checks on the incoming data, error notification, and archive to archive coordination. This equipment package supports a broad range of implementations, ranging from simple data marts that collect a focused set of data and serve a particular user community to large-scale data warehouses that collect, integrate, and summarize transportation data from multiple sources and serve a broad array of users within a region.
INDOT INDOT Traffic Detectors Roadway Data Collection This equipment package collects traffic, road, and environmental conditions information for use in transportation planning, research, and other off-line applications where data quality and completeness take precedence over real-time performance. This equipment package includes the sensors, supporting roadside infrastructure, and communications equipment that collects and transfers information to a center for archival.
INDOT INDOT Traffic Detectors Roadway Probe Data Communications This equipment package collects probe data from passing vehicles that are equipped with a short range communications device. The probe data collected by this equipment package may include link travel times, average speeds, road conditions, and any other data that can be measured and communicated by passing vehicles. This equipment package consists of field equipment that communicates with passing vehicles using short range communications, collects the provided information, and sends the collected information back to a center for processing and distribution.
TRIMARC TRIMARC Traffic Detectors Roadway Data Collection This equipment package collects traffic, road, and environmental conditions information for use in transportation planning, research, and other off-line applications where data quality and completeness take precedence over real-time performance. This equipment package includes the sensors, supporting roadside infrastructure, and communications equipment that collects and transfers information to a center for archival.
TRIMARC TRIMARC Traffic Detectors Roadway Probe Data Communications This equipment package collects probe data from passing vehicles that are equipped with a short range communications device. The probe data collected by this equipment package may include link travel times, average speeds, road conditions, and any other data that can be measured and communicated by passing vehicles. This equipment package consists of field equipment that communicates with passing vehicles using short range communications, collects the provided information, and sends the collected information back to a center for processing and distribution.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
INDOT Data Archive archived data products Archived Data User Systems
Archived Data User Systems archived data product requests INDOT Data Archive
TRIMARC Traffic Detectors roadside archive data INDOT Data Archive
INDOT Traffic Detectors roadside archive data INDOT Data Archive
TRIMARC Traffic Detectors probe archive data INDOT Data Archive
INDOT Traffic Detectors probe archive data INDOT Data Archive
