KIPDA Regional ITS Architecture

Service Packages For: MC - MC04-01

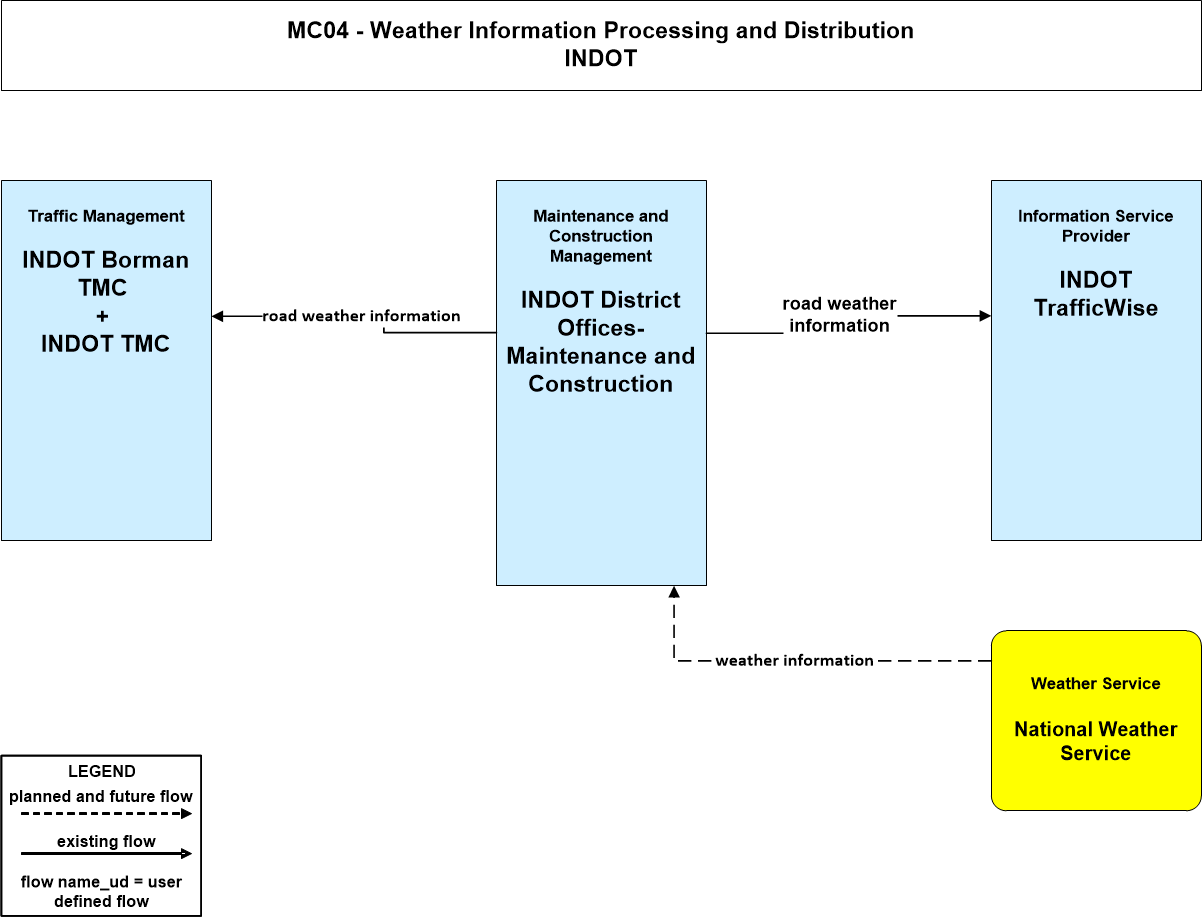

  MC04-01
Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
INDOT District Offices-Maintenance and Construction INDOT
INDOT TrafficWise INDOT
National Weather Service NOAA
INDOT Borman TMC INDOT
INDOT TMC INDOT

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
INDOT INDOT Borman TMC TMC Environmental Monitoring This equipment package assimilates current and forecast road conditions and surface weather information using a combination of weather service provider information, information collected by other centers such as the Maintenance and Construction Management Subsystem, and data collected from environmental sensors deployed on and about the roadway. The collected environmental information is monitored and presented to the operator. This information can be used to issue general traveler advisories and support location specific warnings to drivers. Other equipment packages process the collected information and provide decision support.
INDOT INDOT District Offices-Maintenance and Construction MCM Environmental Information Processing This equipment package processes current and forecast weather data, road condition information, local environmental data, and uses internal models to develop specialized detailed forecasts of local weather and surface conditions. The processed environmental information products are presented to center personnel and disseminated to other centers.
INDOT INDOT TMC TMC Environmental Monitoring This equipment package assimilates current and forecast road conditions and surface weather information using a combination of weather service provider information, information collected by other centers such as the Maintenance and Construction Management Subsystem, and data collected from environmental sensors deployed on and about the roadway. The collected environmental information is monitored and presented to the operator. This information can be used to issue general traveler advisories and support location specific warnings to drivers. Other equipment packages process the collected information and provide decision support.
INDOT INDOT TrafficWise ISP Traveler Data Collection This equipment package collects traveler-related data from other centers, performs data quality checks on the collected data and then consolidates, verifies, and refines the data and makes it available in a consistent format to applications that deliver traveler information. A broad range of traveler-related data is collected including traffic and road conditions, transit data, emergency information and advisories, weather data, special event information, traveler services, parking, multimodal data, and toll/pricing data. This equipment package also shares data with other information service providers.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
INDOT District Offices-Maintenance and Construction road weather information INDOT TMC
National Weather Service weather information INDOT District Offices-Maintenance and Construction
INDOT District Offices-Maintenance and Construction road weather information INDOT Borman TMC
INDOT District Offices-Maintenance and Construction road weather information INDOT TrafficWise
