KIPDA Regional ITS Architecture

Service Packages For: AVSS - AVSS12-5


  AVSS12-5

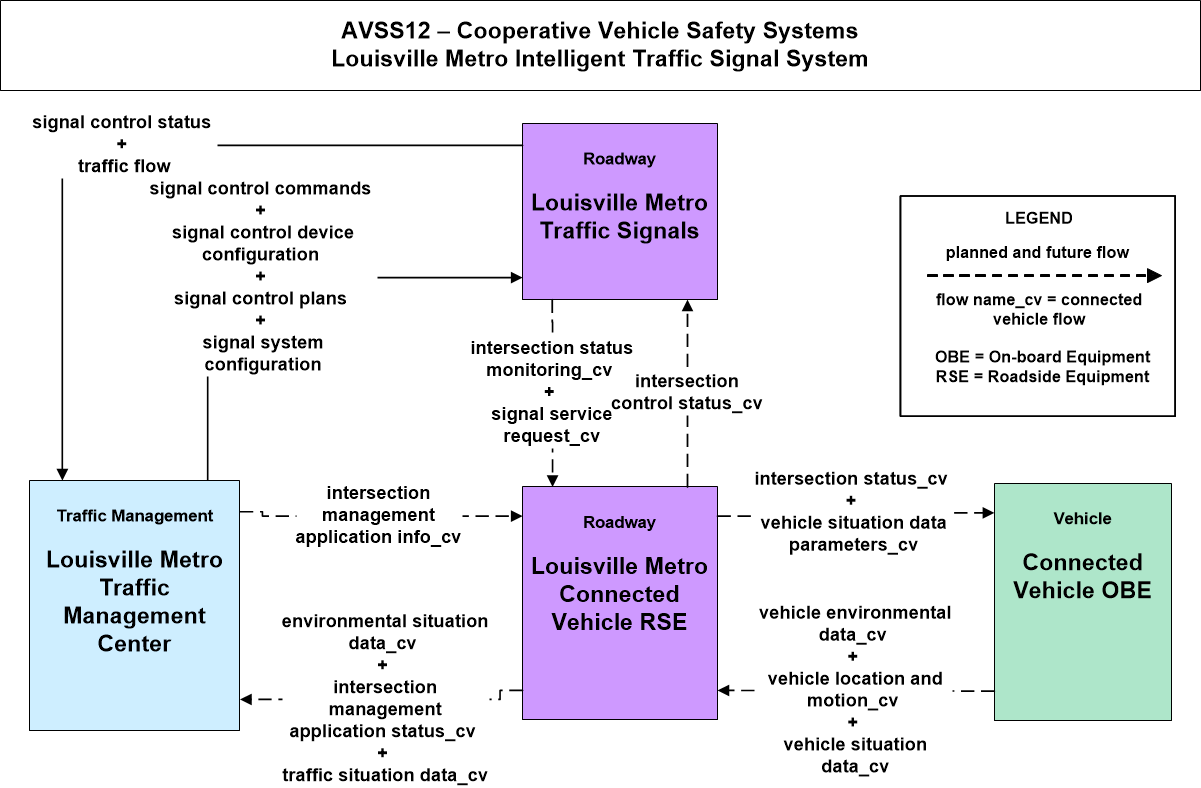

Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
Louisville Metro Traffic Signals Louisville Metro Traffic
Louisville Metro Connected Vehicle RSE Louisville Metro Traffic
Connected Vehicle OBE Travelers
Louisville Metro Traffic Management Center Louisville Metro Traffic

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
Louisville Metro Traffic Louisville Metro Connected Vehicle RSE Roadway Safety Warning System This equipment package monitors for potential safety hazards including wrong way drivers, debris on the road, and adverse road conditions (e.g., standing water, icy conditions) and warns approaching vehicles of potential hazards. This equipment package collects information from passing vehicles and roadside sensors and surveillance equipment, processes this information to identify potential hazards, and provides warnings to passing vehicles using field-vehicle communications.
Louisville Metro Traffic Louisville Metro Traffic Signals Roadway Safety Warning System This equipment package monitors for potential safety hazards including wrong way drivers, debris on the road, and adverse road conditions (e.g., standing water, icy conditions) and warns approaching vehicles of potential hazards. This equipment package collects information from passing vehicles and roadside sensors and surveillance equipment, processes this information to identify potential hazards, and provides warnings to passing vehicles using field-vehicle communications.
Travelers Connected Vehicle OBE Vehicle Warning System This equipment package receives location information from nearby vehicles and uses the received information to determine if there is a possibility of collision and warn the driver. This equipment package also provides information to surrounding vehicles about its own location, speed, and other information to allow other similarly equipped vehicles to warn their drivers if necessary. The same equipment also receives alerts from responding emergency vehicles in the vicinity so the driver can be warned of the approaching emergency vehicle, increasing the safety of the driver and the emergency responder. It includes on-board equipment (OBE) that sends and receives the messages and determines if there is a need to warn the driver, and the driver information system that provides the warnings.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
Louisville Metro Connected Vehicle RSE environmental situation data_cv Louisville Metro Traffic Management Center
Louisville Metro Traffic Signals traffic flow Louisville Metro Traffic Management Center
Louisville Metro Traffic Signals signal control status Louisville Metro Traffic Management Center
Louisville Metro Connected Vehicle RSE intersection management application status_cv Louisville Metro Traffic Management Center
Louisville Metro Connected Vehicle RSE traffic situation data_cv Louisville Metro Traffic Management Center
Louisville Metro Connected Vehicle RSE intersection control status_cv Louisville Metro Traffic Signals
Louisville Metro Traffic Management Center signal control commands Louisville Metro Traffic Signals
Louisville Metro Traffic Management Center signal system configuration Louisville Metro Traffic Signals
Louisville Metro Traffic Management Center signal control plans Louisville Metro Traffic Signals
Louisville Metro Traffic Management Center signal control device configuration Louisville Metro Traffic Signals
Connected Vehicle OBE vehicle situation data_cv Louisville Metro Connected Vehicle RSE
Louisville Metro Traffic Management Center intersection management application info_cv Louisville Metro Connected Vehicle RSE
Connected Vehicle OBE vehicle location and motion_cv Louisville Metro Connected Vehicle RSE
Louisville Metro Traffic Signals intersection status monitoring_cv Louisville Metro Connected Vehicle RSE
Louisville Metro Traffic Signals signal service request_cv Louisville Metro Connected Vehicle RSE
Connected Vehicle OBE vehicle environmental data_cv Louisville Metro Connected Vehicle RSE
Louisville Metro Connected Vehicle RSE intersection status_cv Connected Vehicle OBE
Louisville Metro Connected Vehicle RSE vehicle situation data parameters_cv Connected Vehicle OBE
