KIPDA Regional ITS Architecture

Service Packages For: ATMS - ATMS13-2


  ATMS13-2

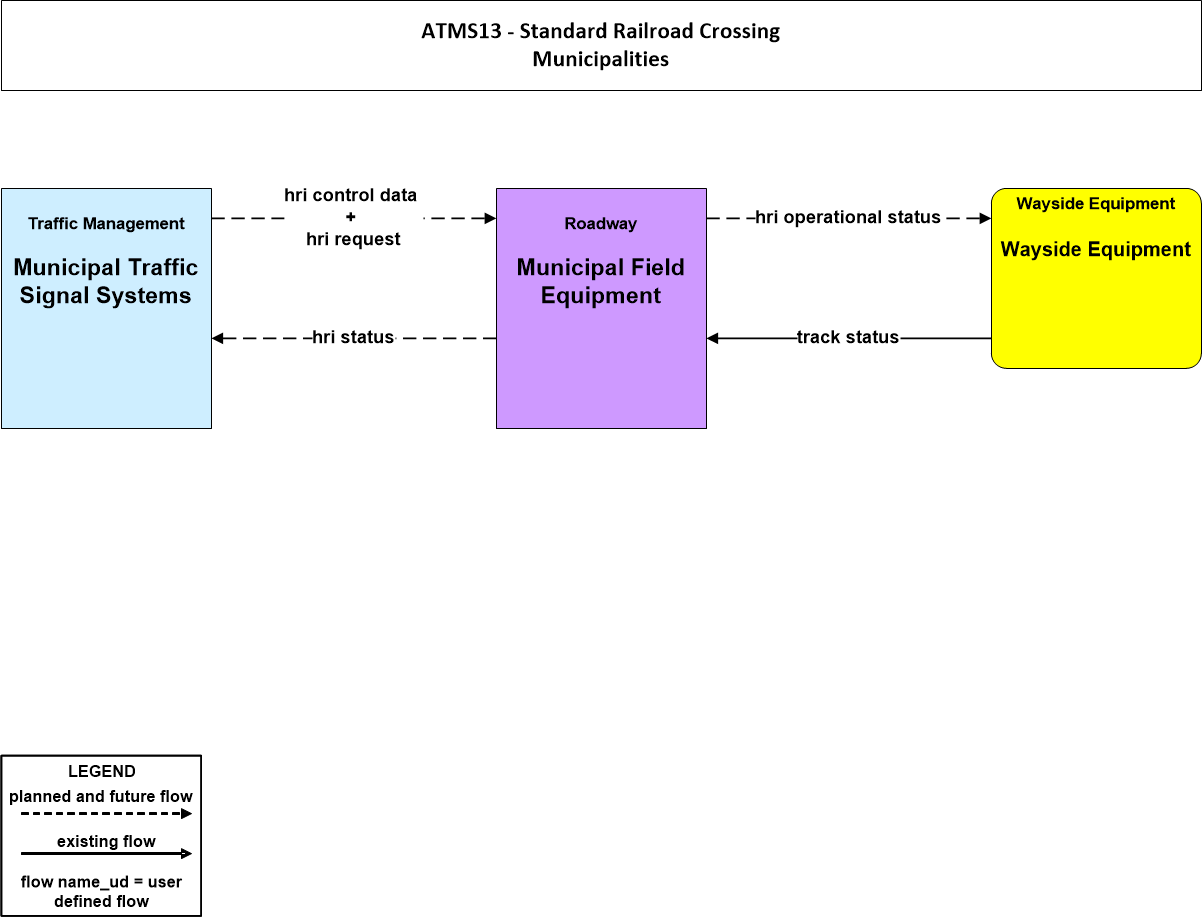

Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
Municipal Traffic Signal Systems Local Governments
Municipal Field Equipment Local Governments
Wayside Equipment Railroad Companies

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
Local Governments Municipal Field Equipment Standard Rail Crossing This equipment package manages highway traffic at highway-rail intersections (HRIs) where operational requirements do not dictate advanced features (e.g., where rail operational speeds are less than 80 miles per hour). Either passive (e.g., the crossbuck sign) or active warning systems (e.g., flashing lights and gates) are supported depending on the specific requirements for each intersection. These traditional HRI warning systems may also be augmented with other standard traffic management devices. The warning systems are activated on notification of an approaching train by interfaced wayside equipment. The equipment at the HRI may also be interconnected with adjacent signalized intersections so that local control can be adapted to highway-rail intersection activities. Health monitoring of the HRI equipment and interfaces is performed; detected abnormalities are reported through interfaces to the wayside interface equipment and the traffic management subsystem.
Local Governments Municipal Traffic Signal Systems HRI Traffic Management This equipment package monitors and controls highway-rail intersection (HRI) equipment. Various levels of roadside equipment may be interfaced to this equipment package including standard speed active warning systems and high speed systems which provide additional information on approaching trains and detect and report obstructions in the HRI. This equipment package remotely monitors and reports the status of the HRI equipment and sends control plan updates to the HRI equipment.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
Municipal Field Equipment hri operational status Wayside Equipment
Municipal Field Equipment hri status Municipal Traffic Signal Systems
Wayside Equipment track status Municipal Field Equipment
Municipal Traffic Signal Systems hri request Municipal Field Equipment
Municipal Traffic Signal Systems hri control data Municipal Field Equipment
