Kauai Regional ITS Architecture

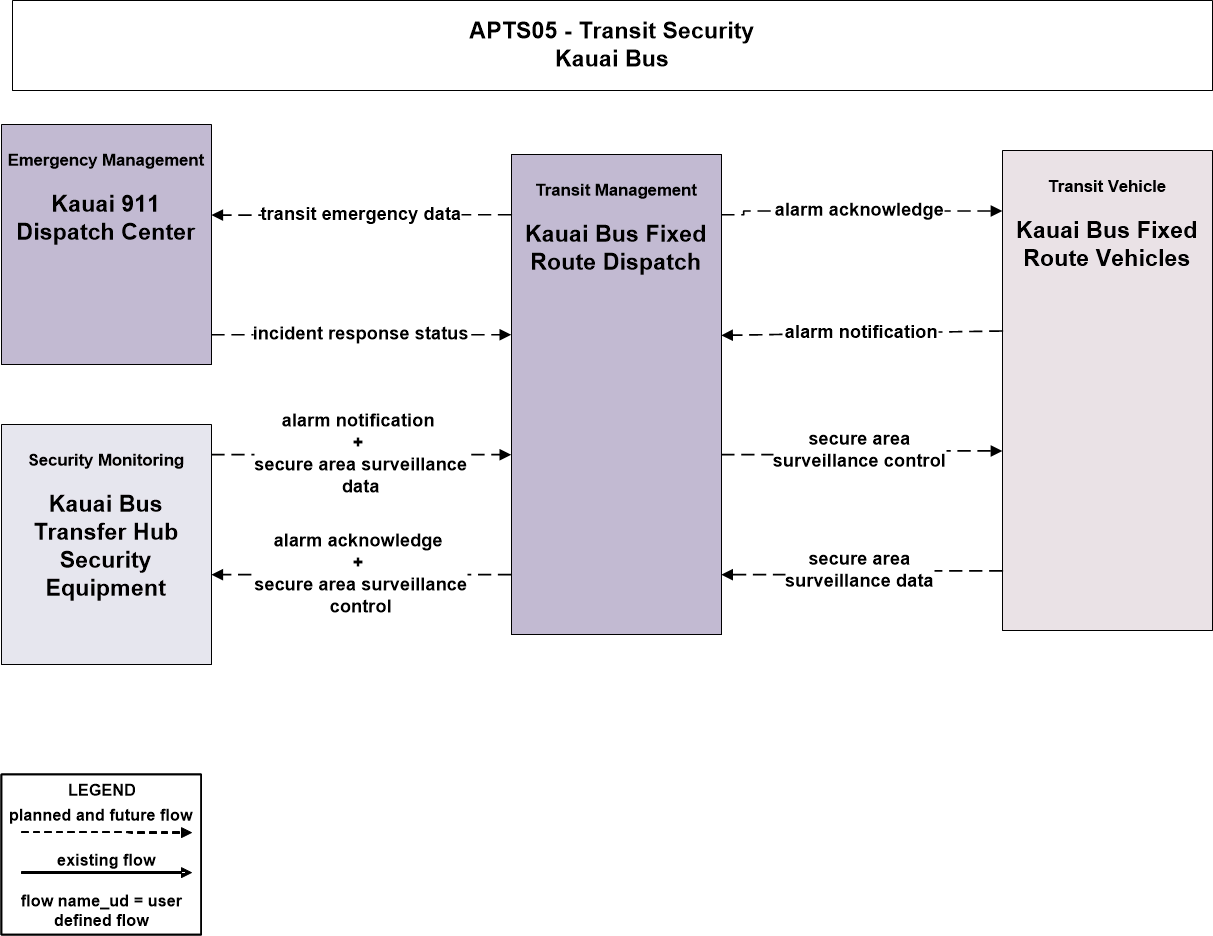

Service Packages For: Kauai County Transportation Agency - APTS05-1


  APTS05-1
Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
Kauai Bus Fixed Route Vehicles Kauai County Transportation Agency
Kauai Bus Fixed Route Dispatch Kauai County Transportation Agency
Kauai Bus Fixed Route Dispatch Kauai County Transportation Agency
Kauai Bus Transfer Hub Security Equipment Kauai County Transportation Agency
Kauai 911 Dispatch Center County of Kauai - Police Department

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
Kauai County Transportation Agency Kauai Bus Fixed Route Dispatch Transit Center Security This equipment package monitors transit vehicle operator or traveler activated alarms received from on-board a transit vehicle. It supports transit vehicle operator authentication and provides the capability to remotely disable a transit vehicle. This equipment package also includes the capability to alert operators and police to potential incidents identified by these security features.
Kauai County Transportation Agency Kauai Bus Fixed Route Dispatch Center Secure Area Surveillance This equipment package monitors surveillance inputs from secure areas in the transportation system. The surveillance may be of secure areas frequented by travelers (i.e., transit stops, transit stations, rest areas, park and ride lots, modal interchange facilities, on-board a transit vehicle, etc.) or around transportation infrastructure such as bridges, tunnels and transit railways or guideways. It provides both video and audio surveillance information to emergency personnel and automatically alerts emergency personnel of potential incidents.
Kauai County Transportation Agency Kauai Bus Fixed Route Vehicles On-board Transit Security This equipment package provides security and safety functions on-board the transit vehicle. It includes surveillance and sensor systems that monitor the on-board environment, silent alarms that can be activated by transit user or vehicle operator, operator authentication, and a remote vehicle disable function. The surveillance equipment includes video (e.g. CCTV cameras), audio systems and/or event recorder systems. The sensor equipment includes threat sensors (e.g. chemical agent, toxic industrial chemical, biological, explosives, and radiological sensors) and object detection sensors (e.g. metal detectors).
Kauai County Transportation Agency Kauai Bus Transfer Hub Security Equipment Field Secure Area Surveillance This equipment package includes video and audio surveillance equipment that monitors conditions of secure areas including facilities (e.g. transit yards) and transportation infrastructure (e.g. as bridges, tunnels, interchanges, and transit railways or guideways). It provides the surveillance information to the Emergency Management Subsystem for possible threat detection. The equipment package also provides local processing of the video or audio information, providing processed or analyzed results to the Emergency Management Subsystem. This equipment package provides the same functions as the Traveler Secure Area Surveillance equipment package.
Kauai County Transportation Agency Kauai Bus Transfer Hub Security Equipment Field Secure Area Sensor Monitoring This equipment package includes sensors that monitor conditions of secure areas including facilities (e.g. transit yards) and transportation infrastructure (e.g. bridges, tunnels, interchanges, and transit railways or guideways). A range of acoustic, environmental threat (e.g. chemical agent, toxic industrial chemical, biological, explosives, and radiological sensors), infrastructure condition and integrity and motion and object sensors are included.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
Kauai Bus Fixed Route Dispatch transit emergency data Kauai 911 Dispatch Center
Kauai Bus Transfer Hub Security Equipment secure area surveillance data Kauai Bus Fixed Route Dispatch
Kauai Bus Transfer Hub Security Equipment alarm notification Kauai Bus Fixed Route Dispatch
Kauai 911 Dispatch Center incident response status Kauai Bus Fixed Route Dispatch
Kauai Bus Fixed Route Vehicles alarm notification Kauai Bus Fixed Route Dispatch
Kauai Bus Fixed Route Vehicles secure area surveillance data Kauai Bus Fixed Route Dispatch
Kauai Bus Fixed Route Dispatch alarm acknowledge Kauai Bus Fixed Route Vehicles
Kauai Bus Fixed Route Dispatch secure area surveillance control Kauai Bus Fixed Route Vehicles
Kauai Bus Fixed Route Dispatch secure area surveillance control Kauai Bus Transfer Hub Security Equipment
Kauai Bus Fixed Route Dispatch alarm acknowledge Kauai Bus Transfer Hub Security Equipment


The Hawaiian language uses two diacritical markings. The 'okina is a glottal stop; and the kahako is a macron. The State of Hawaii strongly encourages the use of Hawaiian diacritical markings. The National ITS Architecture tool, Turbo Architecture, does not allow for the Hawaiian diacritical markings to be input and as such, customized service package diagrams, operational concepts and other outputs from Turbo are unable to reflect the diacritical markings. To ensure consistency in this ITS Architecture website, no Hawaiian diacritical markings will be used.
