Sausage Diagram

(PDF Version)

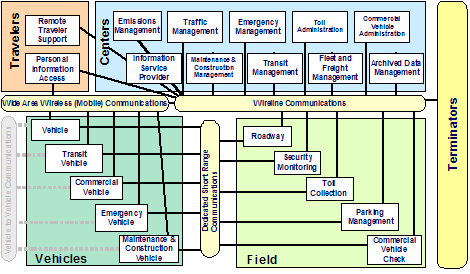

One of the most recognized architecture representations is a Sausage Diagram that shows the systems and primary interconnects in the Region. In the Sausage Diagram National ITS Architecture subsystems are shown are rectangles, and terminators shown as rounded rectangles. In the attached PDF Version, the entire existing, planned, and future ITS inventory is associated with the National ITS Architecture subsystems and terminators. Click on the graphic to download a PDF version.

Last updated: 03-08-06
