Interface: DPS Electronic Screening Stations To TxDOT Credentials Administration and Safety Information Exchange

Architecture Geographic Scope

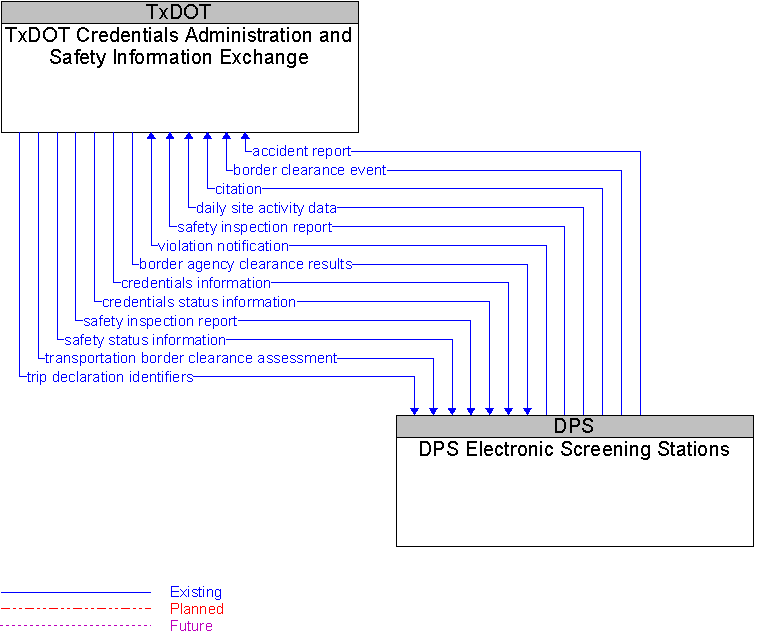

DPS Electronic Screening Stations to TxDOT Credentials Administration and Safety Information Exchange Interface Diagram



Architecture Flow Definitions

accident report   (Existing)   No Applicable ITS Standards

Report of commercial vehicle safety accident. The information may be provided as a response to a real-time query or proactively by the source. The query flow is not explicitly shown.



border agency clearance results   (Existing)   No Applicable ITS Standards

Notification regarding the granting of permission for commercial freight shipment to enter the U.S.



border clearance event   (Existing)   No Applicable ITS Standards

Reports clearance event data regarding action taken at border, including acceptance or override of system decision, and date/time stamp



citation   (Existing)   No Applicable ITS Standards

Report of commercial vehicle citation. The citation includes references to the statute(s) that was (were) violated. It includes information on the violator and the officer issuing the citation. A citation differs from a violation because it is adjudicated by the courts. The information may be provided as a response to a real-time query or proactively by the source. The query flow is not explicitly shown.



credentials information   (Existing)   Applicable ITS Standards

Response containing full credentials information. "Response" may be provided in reaction to a real-time query or a standing request for updated information. The query flow is not explicitly shown.



credentials status information   (Existing)   Applicable ITS Standards

Credentials information such as registration, licensing, insurance, check flags, and electronic screening enrollment data. A unique identifier is included. Corresponds to the credentials portion of CVISN "snapshots." The status information may be provided as a response to a real-time query or as a result of a standing request for updated information (subscription). This may also include information about non-U.S. fleets for use by U.S. authorities, and information regarding U.S. fleets made available to Mexican and Canadian authorities. The query flow is not explicitly shown.



daily site activity data   (Existing)   No Applicable ITS Standards

Record of daily activities at commercial vehicle check stations including summaries of screening events and inspections.



safety inspection report   (Existing)   Applicable ITS Standards

Report containing results of commercial vehicle safety inspection. The information may be provided as a response to a real-time query or proactively by the source. The query flow is not explicitly shown.



safety status information   (Existing)   Applicable ITS Standards

Safety information such as safety ratings, inspection summaries, and violation summaries. A unique identifier is included. Corresponds to the safety portion of CVISN "snapshots." The status information may be provided as a response to a real-time query or as a result of a standing request for updated information (subscription). This may also include information about non-U.S. fleets for use by U.S. authorities, and information regarding U.S. fleets made available to Mexican and Canadian authorities. The query flow is not explicitly shown.



transportation border clearance assessment   (Existing)   No Applicable ITS Standards

Notification regarding the granting of permission for commercial freight shipment to enter the U.S. Includes directions for commercial driver to proceed to nearest vehicle weigh and inspection station for further review if required.



trip declaration identifiers   (Existing)   No Applicable ITS Standards

Specific identifiers extracted from notification containing information regarding pending commercial freight shipment into the U.S. Includes carrier, vehicle, and driver identification data.



violation notification   (Existing)   No Applicable ITS Standards

Notification to enforcement agency of a violation. The violation notification flow describes the statute or regulation that was violated and how it was violated (e. g., overweight on specific axle by xxx pounds or which brake was out of adjustment and how far out of adjustment it was). A violation differs from a citation because it is not adjudicated by the courts.
