Interface: City of Texarkana, TX TMC To Municipal/County Public Safety Dispatch

Architecture Geographic Scope

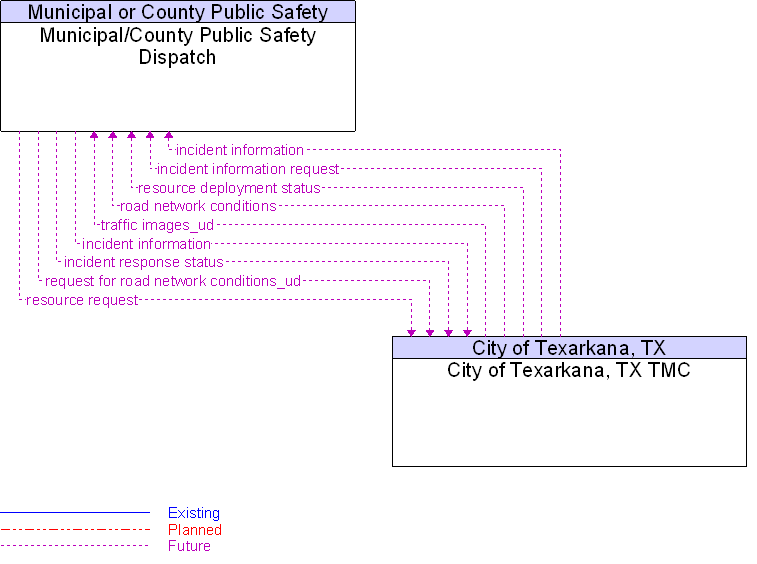

City of Texarkana, TX TMC to Municipal/County Public Safety Dispatch Interface Diagram



Architecture Flow Definitions

incident information   (Future)   Applicable ITS Standards

Notification of existence of incident and expected severity, location, time and nature of incident.



incident information request   (Future)   Applicable ITS Standards

Request for incident information, clearing time, severity. The request can be a subscription that initiates as-needed information updates as well as a one-time request for information.



incident response status   (Future)   Applicable ITS Standards

Status of the current incident response including traffic management strategies implemented at the site (e.g., closures, diversions, traffic signal control overrides).



request for road network conditions_ud   (Future)   No Applicable ITS Standards

Request for traffic information, road conditions, surface weather conditions, incident information, and other road network status. The request specifies the region/route of interest, the desired effective time period, and other parameters that allow preparation of a tailored response. The request can be a subscription that initiates as-needed information updates as well as a one-time request for information.



resource deployment status   (Future)   Applicable ITS Standards

Status of traffic management center resource deployment identifying the resources available and their current deployment status.



resource request   (Future)   Applicable ITS Standards

A request for traffic management resources to implement special traffic control measures, assist in clean up, verify an incident, etc.



road network conditions   (Future)   Applicable ITS Standards

Current and forecasted traffic information, road and weather conditions, incident information, and other road network status. Either raw data, processed data, or some combination of both may be provided by this architecture flow.



traffic images_ud   (Future)   No Applicable ITS Standards

High fidelity, real-time traffic images suitable for surveillance monitoring by the operator or for use in machine vision applications. This flow includes the images and the operational status of the surveillance system.
