KIPDA Regional ITS Architecture

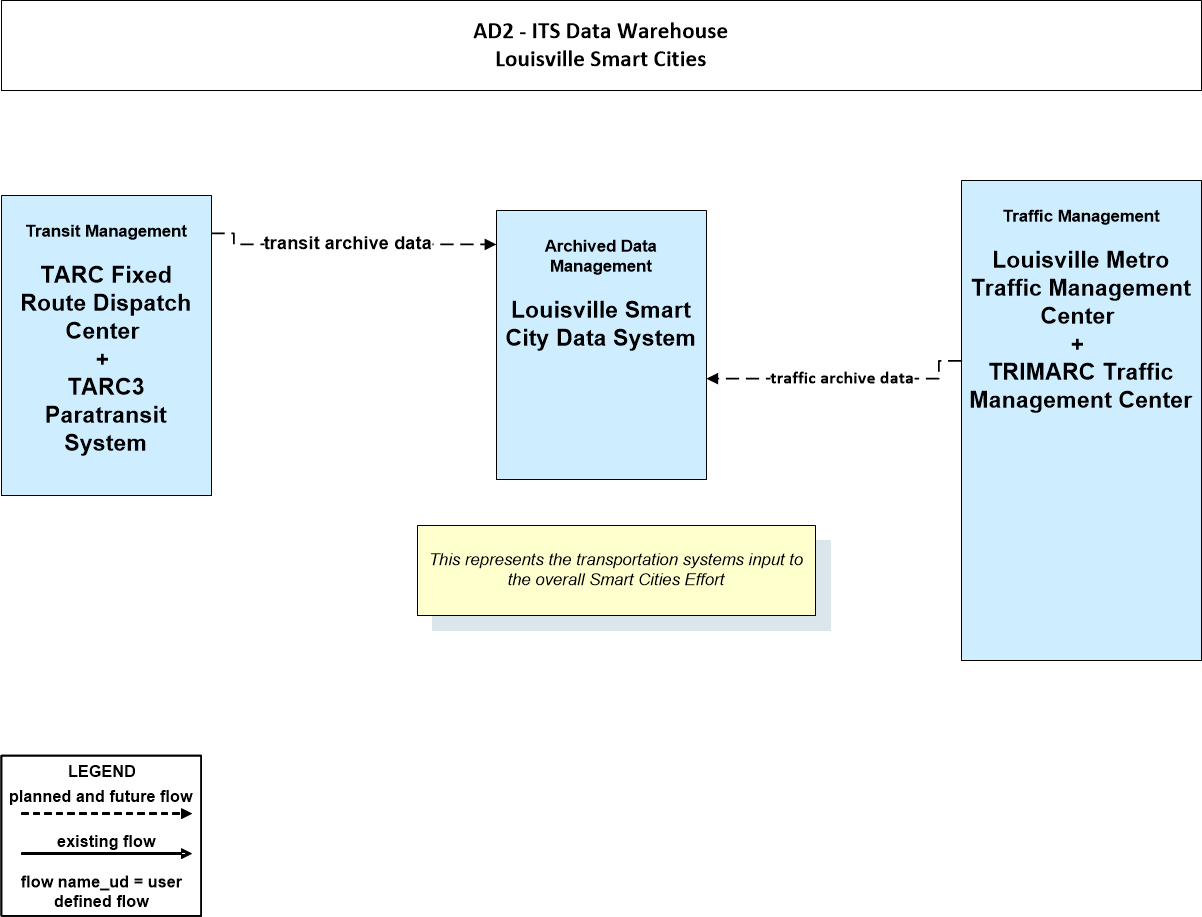

Service Packages For: TARC - AD02-2


  AD02-2
Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
TARC Fixed Route Dispatch Center TARC
TARC3 Paratransit System TARC
Louisville Metro Traffic Management Center Louisville Metro Traffic
TRIMARC Traffic Management Center TRIMARC
Louisville Smart City Data System Louisville Metro Government

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
Louisville Metro Government Louisville Smart City Data System ITS Data Repository This equipment package collects data and data catalogs from one or more data sources and stores the data in a focused repository that is suited to a particular set of ITS data users. This equipment package includes capabilities for performing quality checks on the incoming data, error notification, and archive to archive coordination. This equipment package supports a broad range of implementations, ranging from simple data marts that collect a focused set of data and serve a particular user community to large-scale data warehouses that collect, integrate, and summarize transportation data from multiple sources and serve a broad array of users within a region.
Louisville Metro Traffic Louisville Metro Traffic Management Center Traffic Data Collection This equipment package collects and stores traffic information that is collected in the course of traffic operations performed by the Traffic Management Subsystem. This data can be used directly by operations personnel or it can be made available to other data users and archives in the region.
Louisville Metro Traffic Louisville Metro Traffic Management Center Traffic and Roadside Data Archival This equipment package collects and archives traffic, roadway, and environmental information for use in off-line planning, research, and analysis. The equipment package controls and collects information directly from equipment at the roadside, reflecting the deployment of traffic detectors that are used primarily for traffic monitoring and planning purposes rather than for traffic management.
TARC TARC Fixed Route Dispatch Center Transit Data Collection This equipment package collects and stores transit information that is collected in the course of transit operations performed by the Transit Management Subsystem. This data can be used directly by operations personnel or it can be made available to other data users and archives in the region.
TARC TARC3 Paratransit System Transit Data Collection This equipment package collects and stores transit information that is collected in the course of transit operations performed by the Transit Management Subsystem. This data can be used directly by operations personnel or it can be made available to other data users and archives in the region.
TRIMARC TRIMARC Traffic Management Center Traffic Data Collection This equipment package collects and stores traffic information that is collected in the course of traffic operations performed by the Traffic Management Subsystem. This data can be used directly by operations personnel or it can be made available to other data users and archives in the region.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
TRIMARC Traffic Management Center traffic archive data Louisville Smart City Data System
Louisville Metro Traffic Management Center traffic archive data Louisville Smart City Data System
TARC3 Paratransit System transit archive data Louisville Smart City Data System
TARC Fixed Route Dispatch Center transit archive data Louisville Smart City Data System
