Maui Regional ITS Architecture

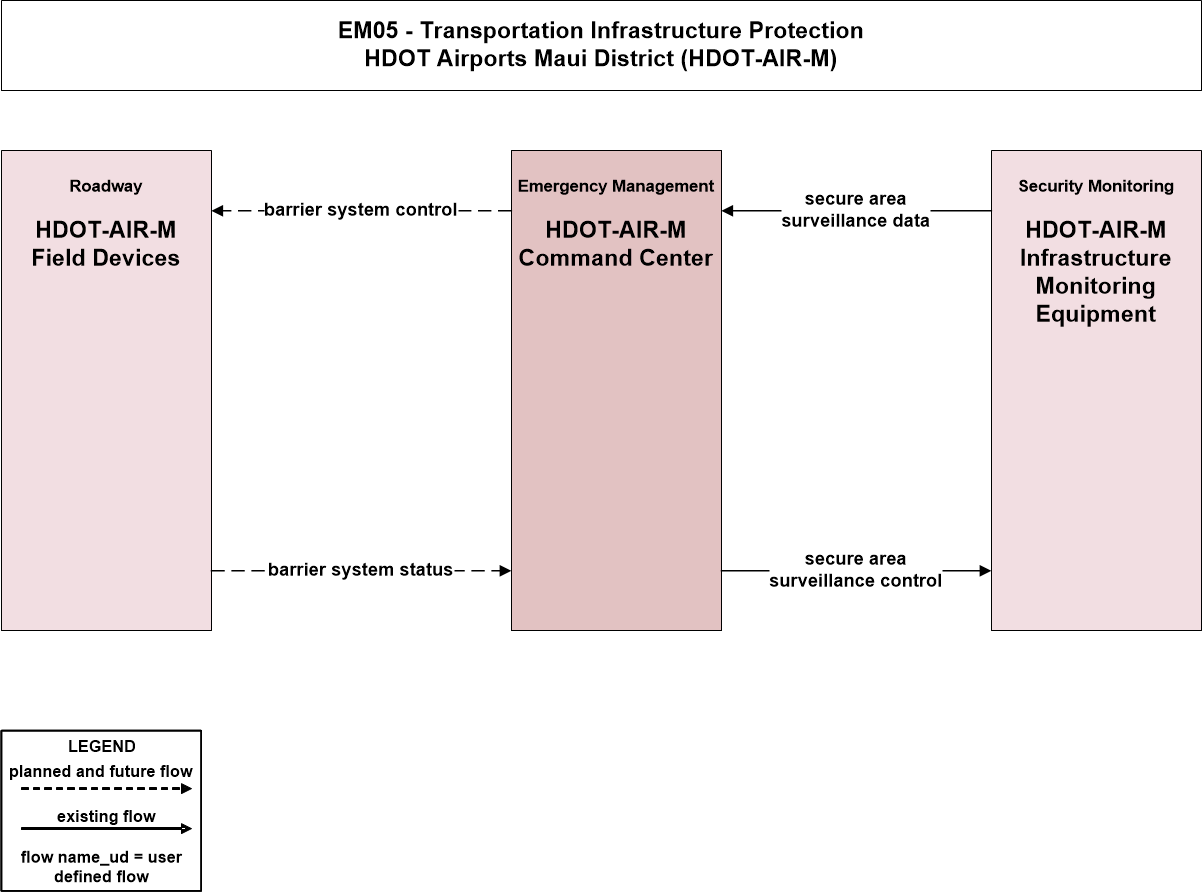

Service Packages For: Hawaii Department of Transportation - Airports Division, Maui District - EM05-2


  EM05-2
Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
HDOT-AIR-M Command Center Hawaii Department of Transportation - Airports Division, Maui District
HDOT-AIR-M Command Center Hawaii Department of Transportation - Airports Division, Maui District
HDOT-AIR-M Infrastructure Monitoring Equipment Hawaii Department of Transportation - Airports Division, Maui District
HDOT-AIR-M Field Devices Hawaii Department of Transportation - Airports Division, Maui District

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
Hawaii Department of Transportation - Airports Division, Maui District HDOT-AIR-M Command Center Center Secure Area Surveillance This equipment package monitors surveillance inputs from secure areas in the transportation system. The surveillance may be of secure areas frequented by travelers (i.e., transit stops, transit stations, rest areas, park and ride lots, modal interchange facilities, on-board a transit vehicle, etc.) or around transportation infrastructure such as bridges, tunnels and transit railways or guideways. It provides both video and audio surveillance information to emergency personnel and automatically alerts emergency personnel of potential incidents.
Hawaii Department of Transportation - Airports Division, Maui District HDOT-AIR-M Command Center Barrier System Management This equipment package remotely monitors and controls barrier systems for transportation facilities and infrastructure under control of center personnel. Barrier systems include automatic or remotely controlled gates, barriers and other access control systems. The equipment package also provides an interface to other centers to allow monitoring and control of the barriers from other centers (e.g., public safety or emergency operations centers).
Hawaii Department of Transportation - Airports Division, Maui District HDOT-AIR-M Field Devices Field Barrier System Control This equipment package includes the field equipment that controls barrier systems used to control access to transportation facilities and infrastructure. Barrier systems include automatic or remotely controlled gates, barriers and other access control systems.
Hawaii Department of Transportation - Airports Division, Maui District HDOT-AIR-M Infrastructure Monitoring Equipment Field Secure Area Surveillance This equipment package includes video and audio surveillance equipment that monitors conditions of secure areas including facilities (e.g. transit yards) and transportation infrastructure (e.g. as bridges, tunnels, interchanges, and transit railways or guideways). It provides the surveillance information to the Emergency Management Subsystem for possible threat detection. The equipment package also provides local processing of the video or audio information, providing processed or analyzed results to the Emergency Management Subsystem. This equipment package provides the same functions as the Traveler Secure Area Surveillance equipment package.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
HDOT-AIR-M Field Devices barrier system status HDOT-AIR-M Command Center
HDOT-AIR-M Infrastructure Monitoring Equipment secure area surveillance data HDOT-AIR-M Command Center
HDOT-AIR-M Command Center barrier system control HDOT-AIR-M Field Devices
HDOT-AIR-M Command Center secure area surveillance control HDOT-AIR-M Infrastructure Monitoring Equipment


The Hawaiian language uses two diacritical markings. The 'okina is a glottal stop; and the kahako is a macron. The State of Hawaii strongly encourages the use of Hawaiian diacritical markings. The National ITS Architecture tool, Turbo Architecture, does not allow for the Hawaiian diacritical markings to be input and as such, customized service package diagrams, operational concepts and other outputs from Turbo are unable to reflect the diacritical markings. To ensure consistency in this ITS Architecture website, no Hawaiian diacritical markings will be used.
